BlackStar 140CTL70 - 140 Pitch Taper Lock Sprocket - 70 Tooth


Price:
$ 2,204.98

Description

The BlackStar 140CTL70 is a 140 pitch Taper Lock roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number 140CTL70
Chain Pitch 140
Number of Teeth 70
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Outside Diameter 40.02"
Pitch Diameter 39.006"
Approx. Weight 241.0 lbs

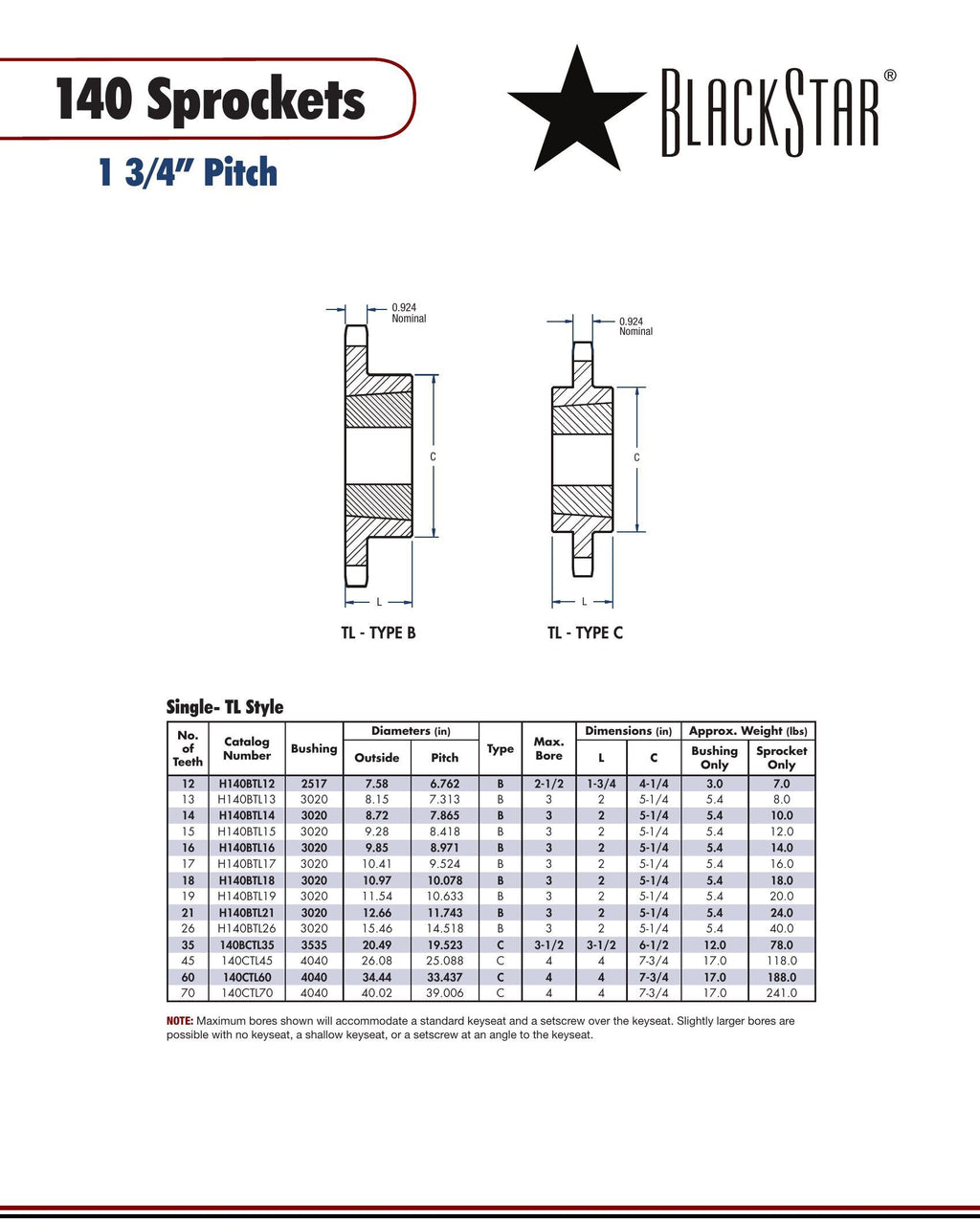

BlackStar 140CTL70 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 140TB70, Browning 140TB70
