BlackStar 140F35 - 140 Pitch QD Sprocket - 35 Tooth


Price:
$ 753.30

Description

The BlackStar 140F35 is a 140 pitch QD roller chain sprocket with 35 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 140F35
Chain Pitch 140
Number of Teeth 35
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 20.49"
Pitch Diameter 19.523"
Approx. Weight 78.0 lbs

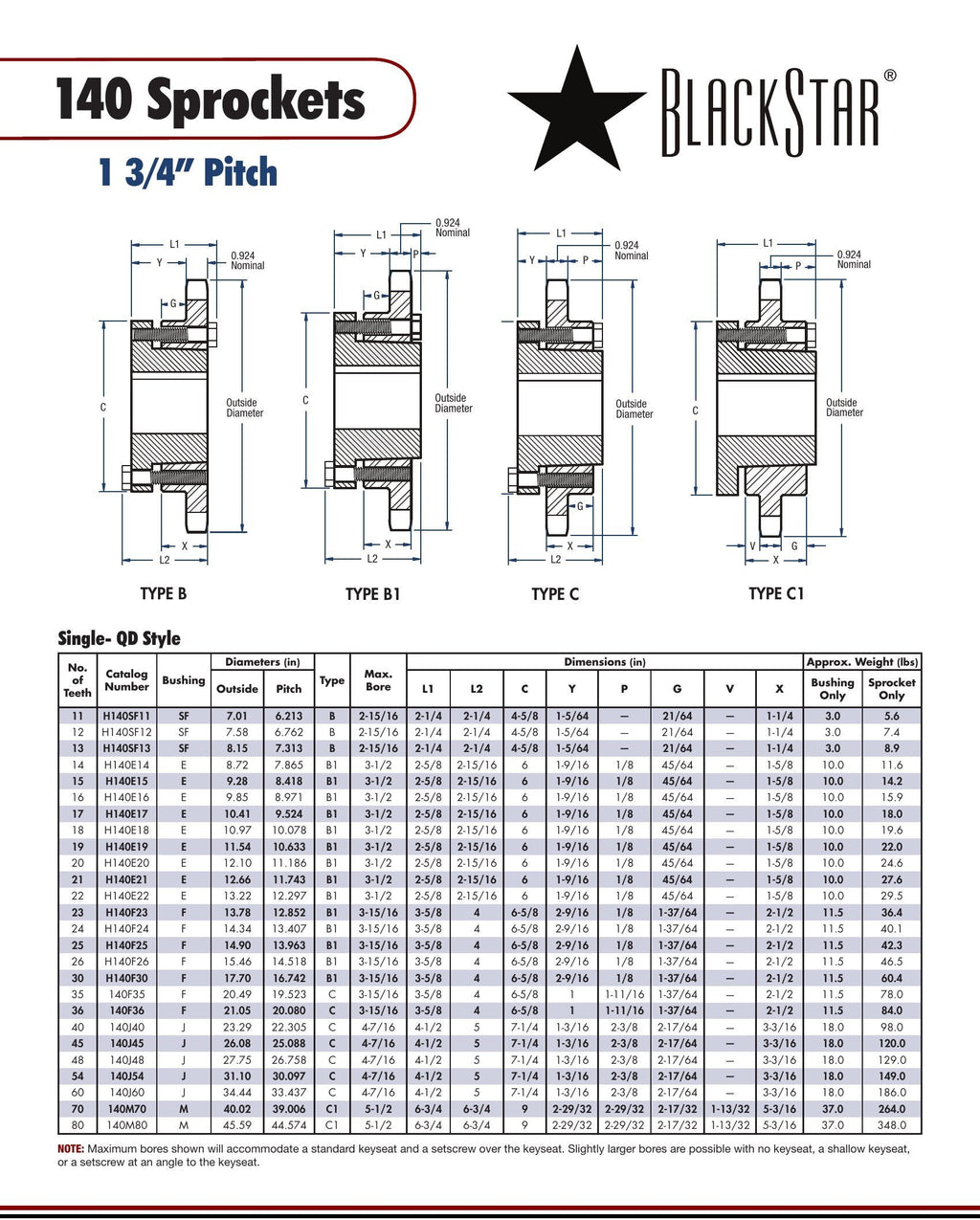

BlackStar 140F35 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 140F35, Martin 140F35
