BlackStar 140J48 - 140 Pitch QD Sprocket - 48 Tooth


Price:
$ 1,083.29

Description

The BlackStar 140J48 is a 140 pitch QD roller chain sprocket with 48 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type J Bushing (sold separately).

Specifications
Part Number 140J48
Chain Pitch 140
Number of Teeth 48
Maximum Bore 4-7/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type J Bushing
Strand Count Single
Material Steel
Outside Diameter 27.75"
Pitch Diameter 26.758"
Approx. Weight 129.0 lbs

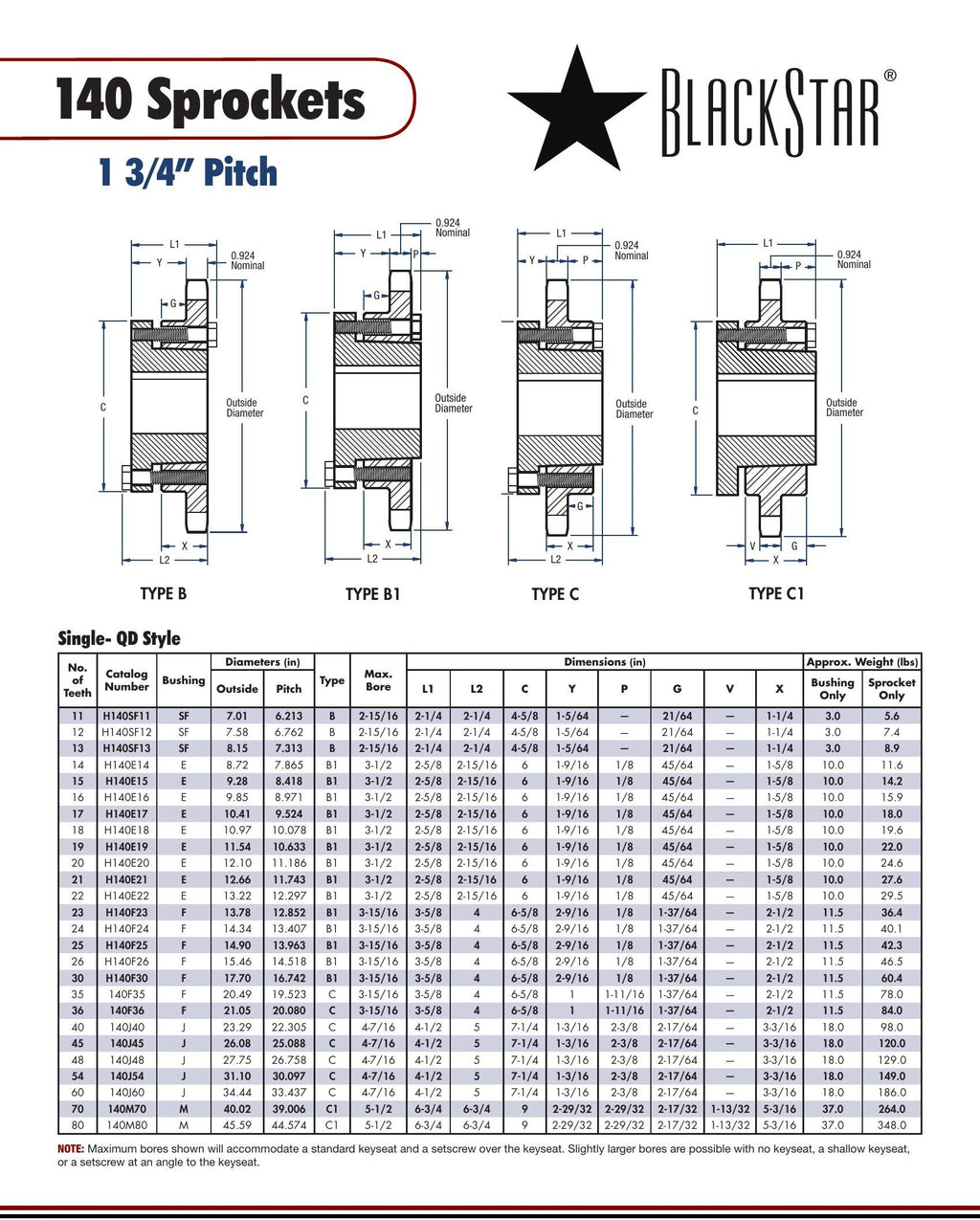

BlackStar 140J48 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type J Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type J Bushing Spec Sheet

Cross-references: Browning 140J48, Martin 140J48
