BlackStar 140M70 - 140 Pitch QD Sprocket - 70 Tooth


Price:
$ 2,236.57

Description

The BlackStar 140M70 is a 140 pitch QD roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type M Bushing (sold separately).

Specifications
Part Number 140M70
Chain Pitch 140
Number of Teeth 70
Maximum Bore 5-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type M Bushing
Strand Count Single
Material Steel
Outside Diameter 40.02"
Pitch Diameter 39.006"
Approx. Weight 264.0 lbs

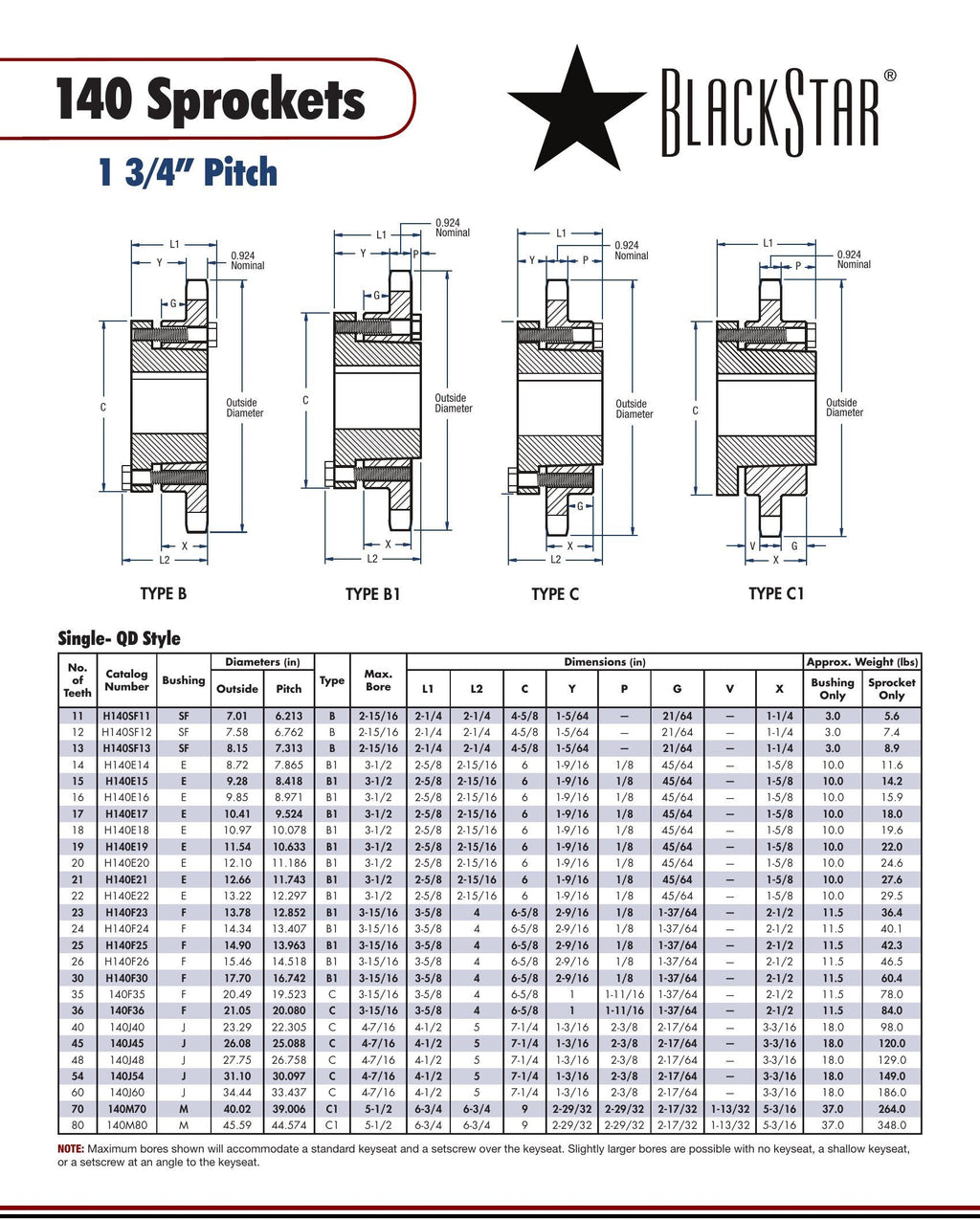

BlackStar 140M70 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type M Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type M Bushing Spec Sheet

Cross-references: Browning 140M70, Martin 140M70
