BlackStar 140M80 - 140 Pitch QD Sprocket - 80 Tooth


Price:
$ 2,247.26

Description

The BlackStar 140M80 is a 140 pitch QD roller chain sprocket with 80 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type M Bushing (sold separately).

Specifications
Part Number 140M80
Chain Pitch 140
Number of Teeth 80
Maximum Bore 5-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type M Bushing
Strand Count Single
Material Steel
Outside Diameter 45.59"
Pitch Diameter 44.574"
Approx. Weight 348.0 lbs

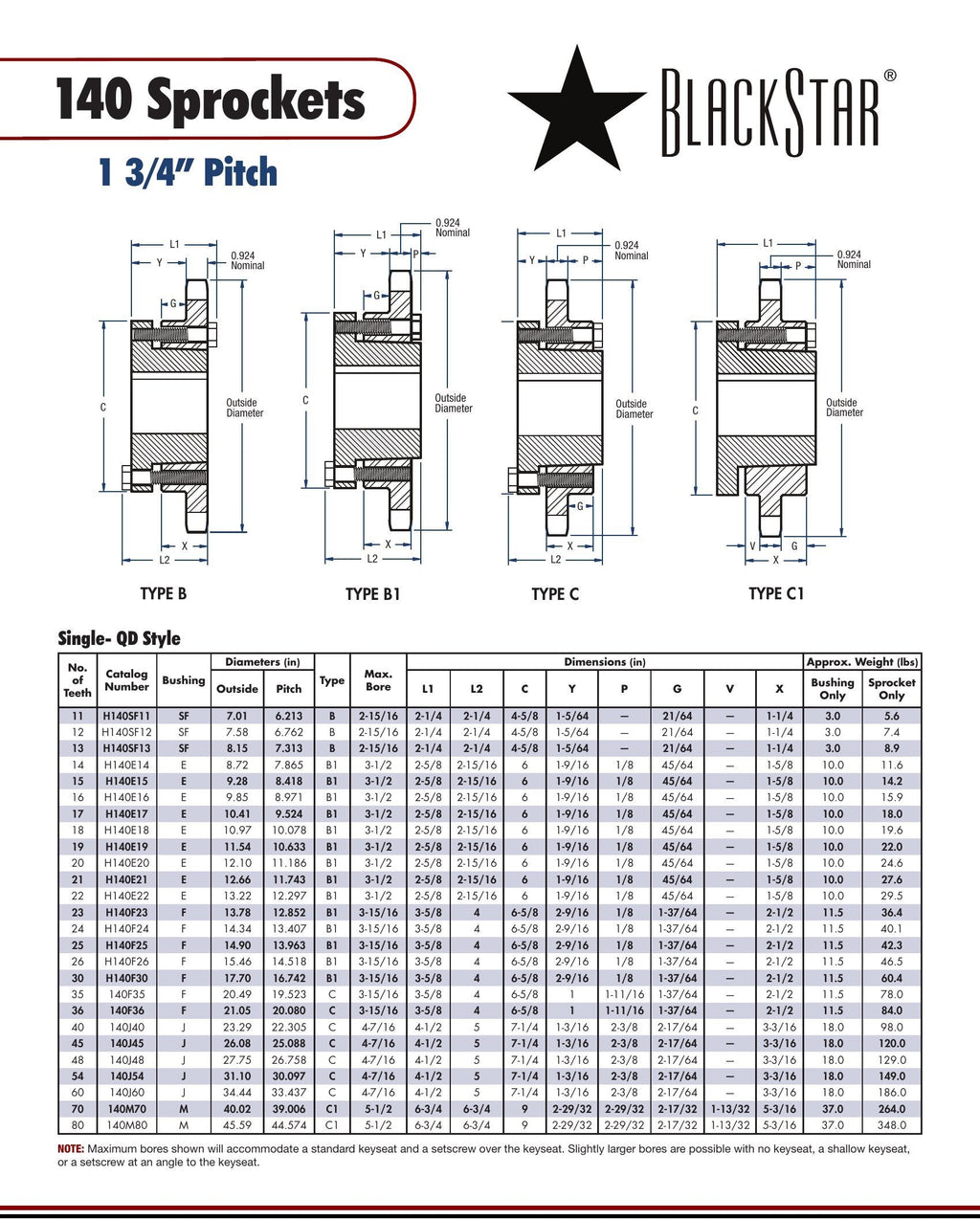

BlackStar 140M80 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type M Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type M Bushing Spec Sheet

Cross-references: Browning 140M80, Martin 140M80
