BlackStar 140R36 - 140 Pitch R Sprocket - 36 Tooth


Price:
$ 884.52

Description

The BlackStar 140R36 is a 140 pitch R roller chain sprocket with 36 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. Requires a Split Taper Bushing (sold separately).

Specifications
Part Number 140R36
Chain Pitch 140
Number of Teeth 36
Bore Type Plain Bore
Hub Style R
Strand Count Single
Material Steel
Outside Diameter 21.05"
Pitch Diameter 20.080"
Approx. Weight 90.000 lbs
Bushing Required Split Taper Bushing

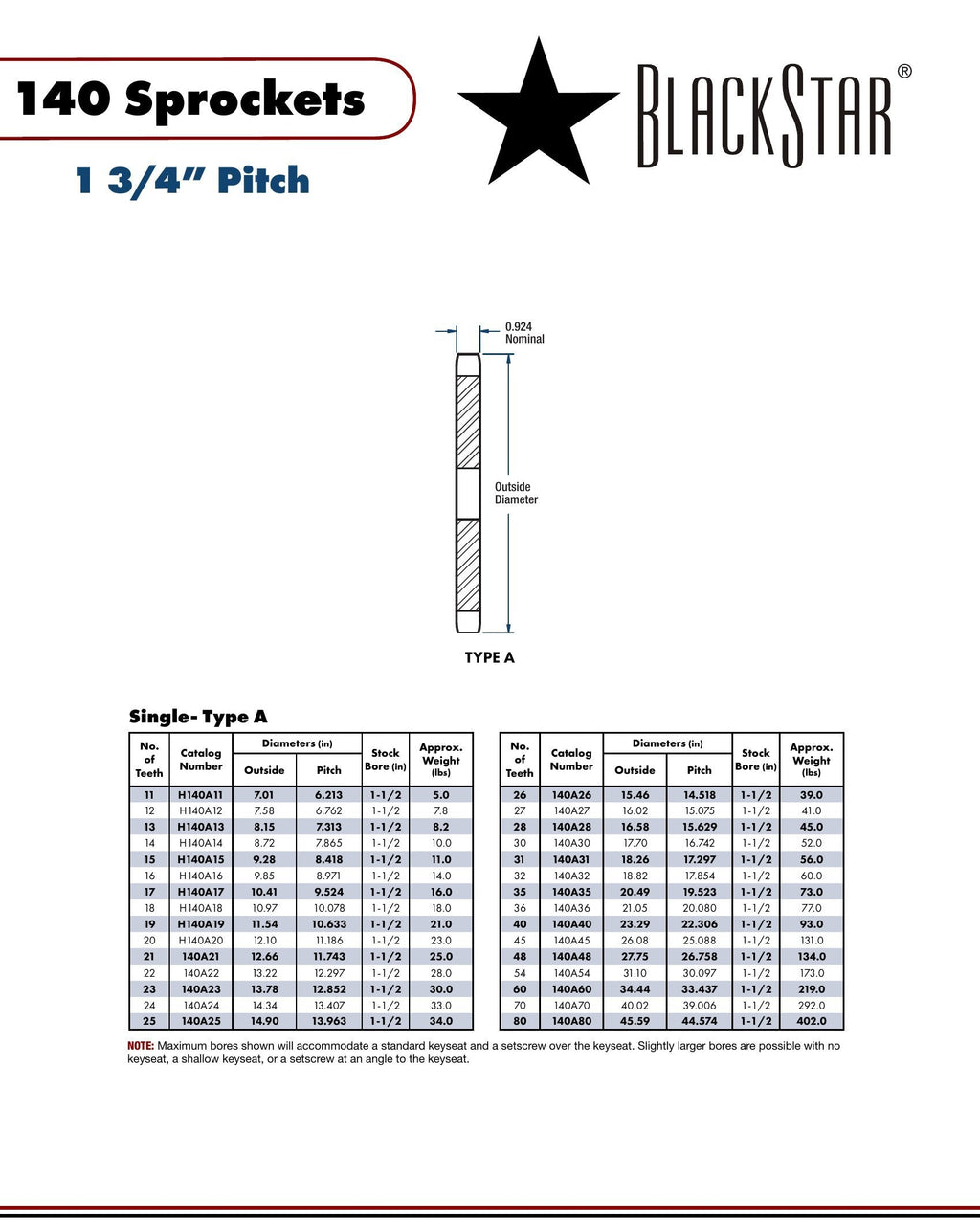

BlackStar 140R36 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and finished to your exact bore size.

Shop Bushings

Cross-references: Browning 140R36, Martin 140R36
