BlackStar 160J35 - 160 Pitch QD Sprocket - 35 Tooth


Price:
$ 1,133.35

Description

The BlackStar 160J35 is a 160 pitch QD roller chain sprocket with 35 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type J Bushing (sold separately).

Specifications
Part Number 160J35
Chain Pitch 160
Number of Teeth 35
Maximum Bore 4-7/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type J Bushing
Strand Count Single
Material Steel
Outside Diameter 23.42"
Pitch Diameter 22.312"
Approx. Weight 116.0 lbs

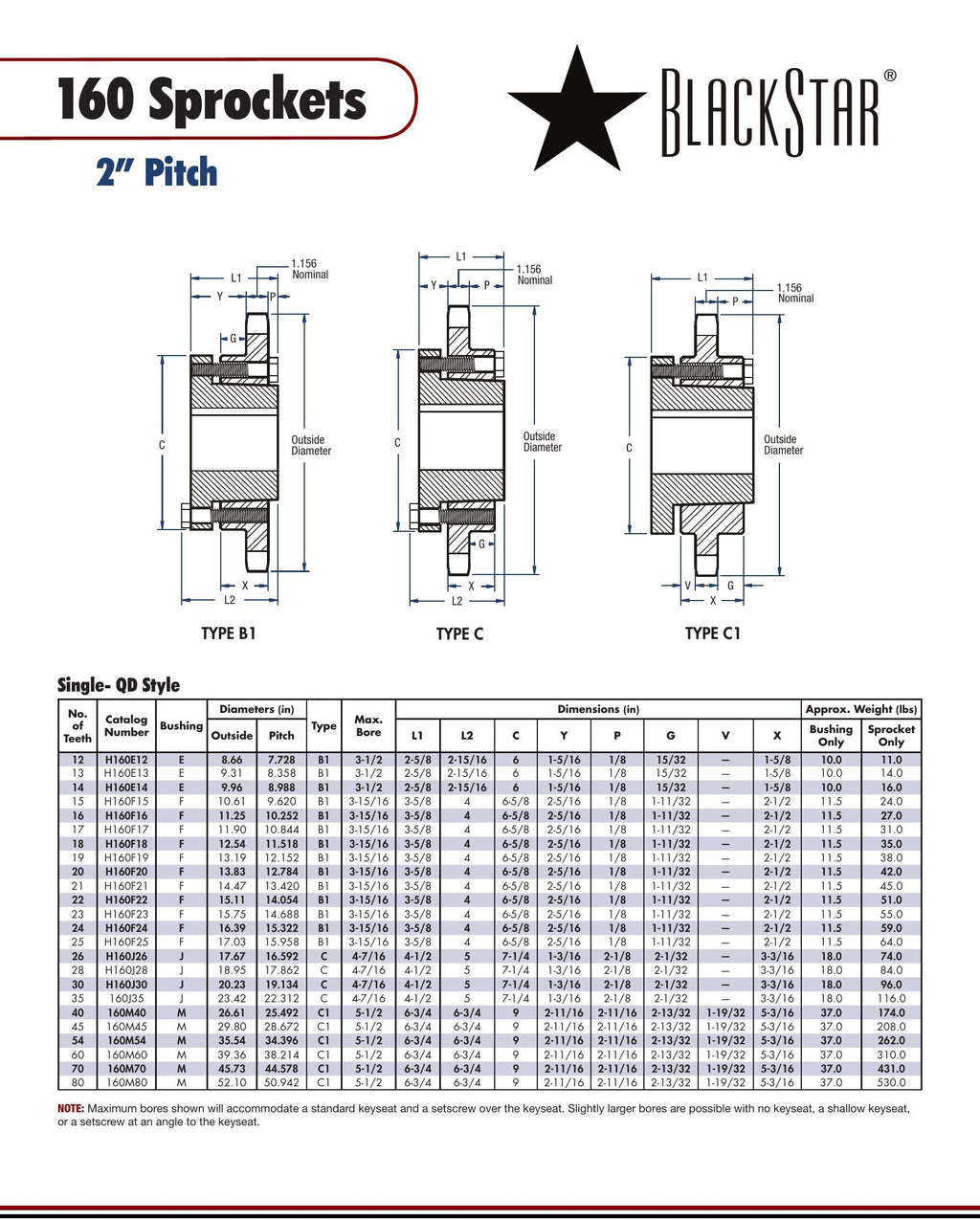

BlackStar 160J35 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type J Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type J Bushing Spec Sheet

Cross-references: Browning 160J35, Martin 160J35
