BlackStar 160M40 - 160 Pitch QD Sprocket - 40 Tooth


Price:
$ 1,364.69

Description

The BlackStar 160M40 is a 160 pitch QD roller chain sprocket with 40 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type M Bushing (sold separately).

Specifications
Part Number 160M40
Chain Pitch 160
Number of Teeth 40
Maximum Bore 5-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type M Bushing
Strand Count Single
Material Steel
Outside Diameter 26.61"
Pitch Diameter 25.492"
Approx. Weight 174.0 lbs

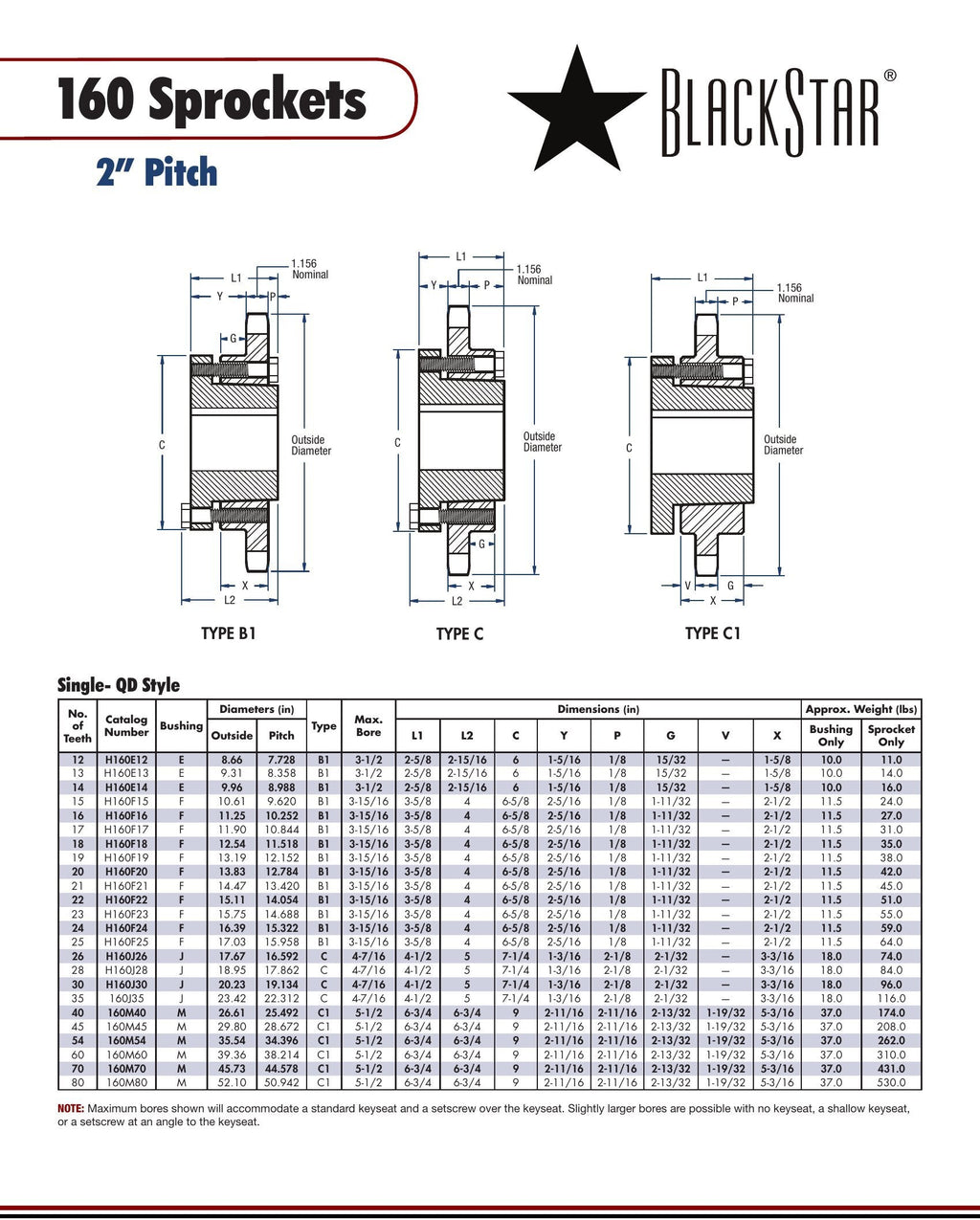

BlackStar 160M40 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type M Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type M Bushing Spec Sheet

Cross-references: Browning 160M40, Martin 160M40
