BlackStar 160M54 - 160 Pitch QD Sprocket - 54 Tooth


Price:
$ 2,649.67

Description

The BlackStar 160M54 is a 160 pitch QD roller chain sprocket with 54 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type M Bushing (sold separately).

Specifications
Part Number 160M54
Chain Pitch 160
Number of Teeth 54
Maximum Bore 5-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type M Bushing
Strand Count Single
Material Steel
Outside Diameter 35.54"
Pitch Diameter 34.396"
Approx. Weight 262.0 lbs

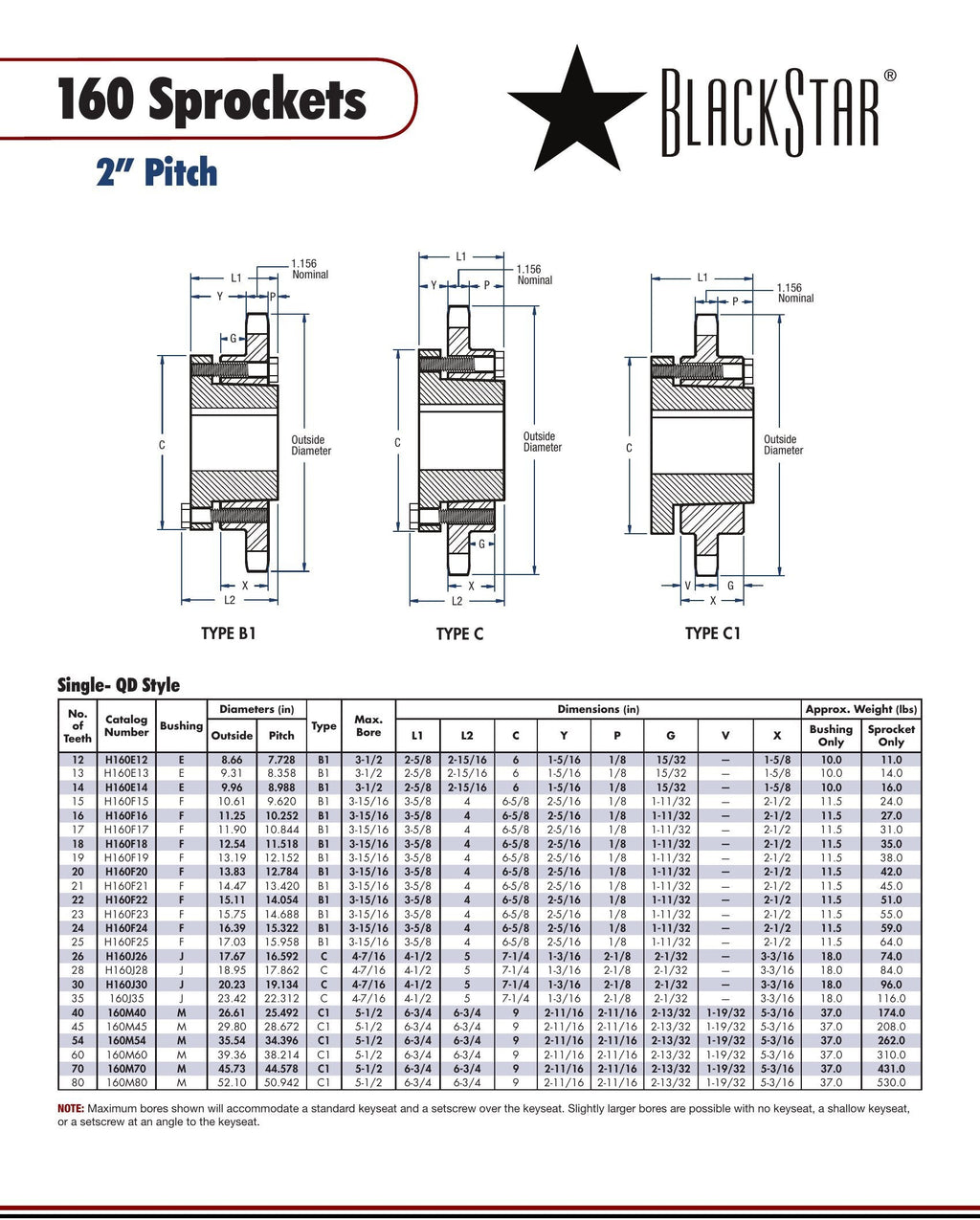

BlackStar 160M54 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type M Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type M Bushing Spec Sheet

Cross-references: Browning 160M54, Martin 160M54
