BlackStar 160S30 - 160 Pitch Split Taper Sprocket - 30 Tooth


Price:
$ 1,165.43

Description

The BlackStar 160S30 is a 160 pitch Split Taper roller chain sprocket with 30 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number 160S30
Chain Pitch 160
Number of Teeth 30
Bore Type Plain Bore
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Single
Material Steel
Outside Diameter 20.23"
Pitch Diameter 19.134"
Approx. Weight 115.000 lbs
BlackStar 160S30 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

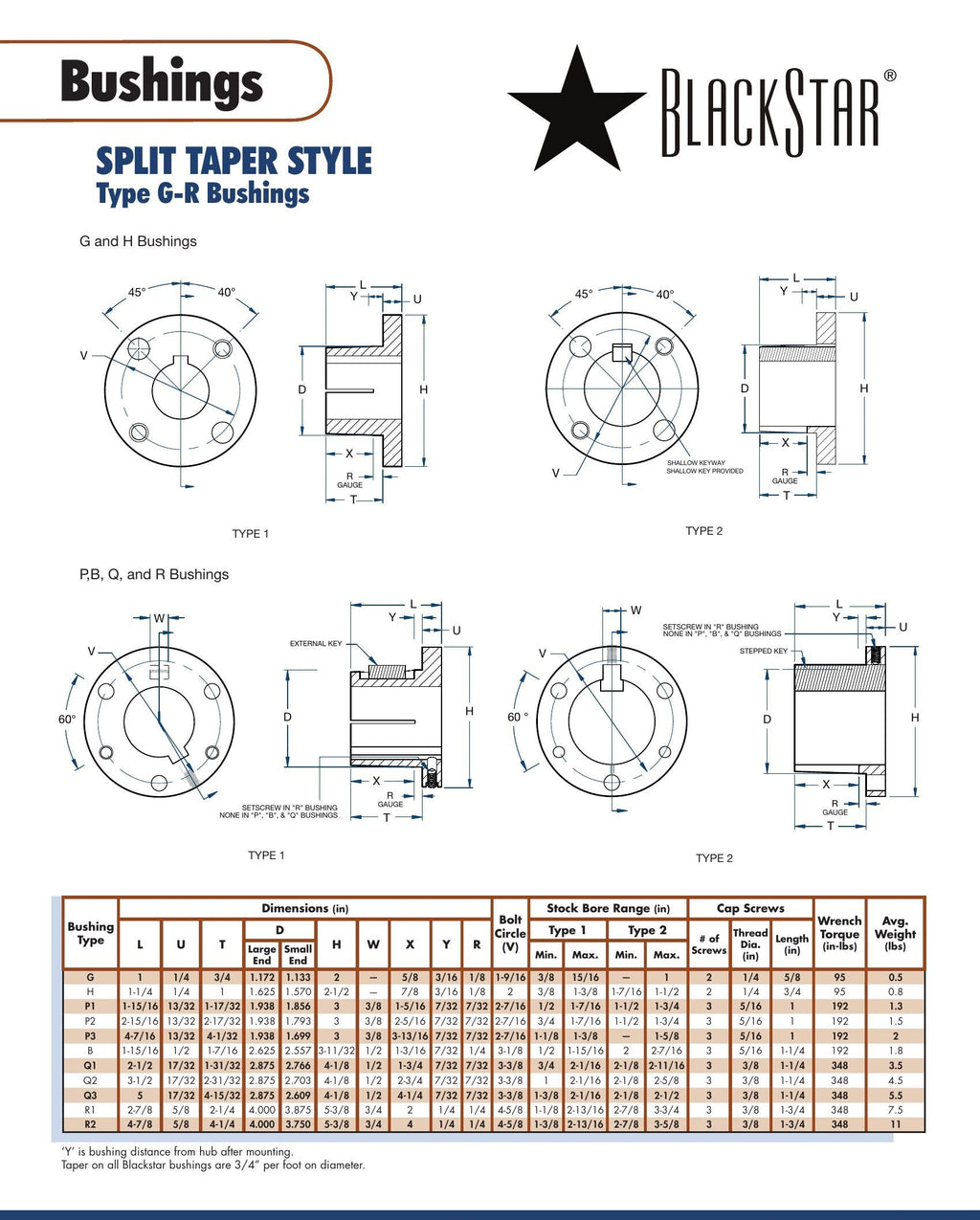

BlackStar Split Taper Bushing Spec Sheet
