BlackStar 160U80 - 160 Pitch QD Sprocket - 80 Tooth


Price:
$ 4,666.57

Description

The BlackStar 160U80 is a 160 pitch QD roller chain sprocket with 80 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Bushing (sold separately).

Specifications
Part Number 160U80
Chain Pitch 160
Number of Teeth 80
Bore Type Plain Bore
Hub Style QD
Bushing Required QD Bushing
Strand Count Single
Material Steel
Outside Diameter 52.10"
Pitch Diameter 50.942"
Approx. Weight 414.000 lbs

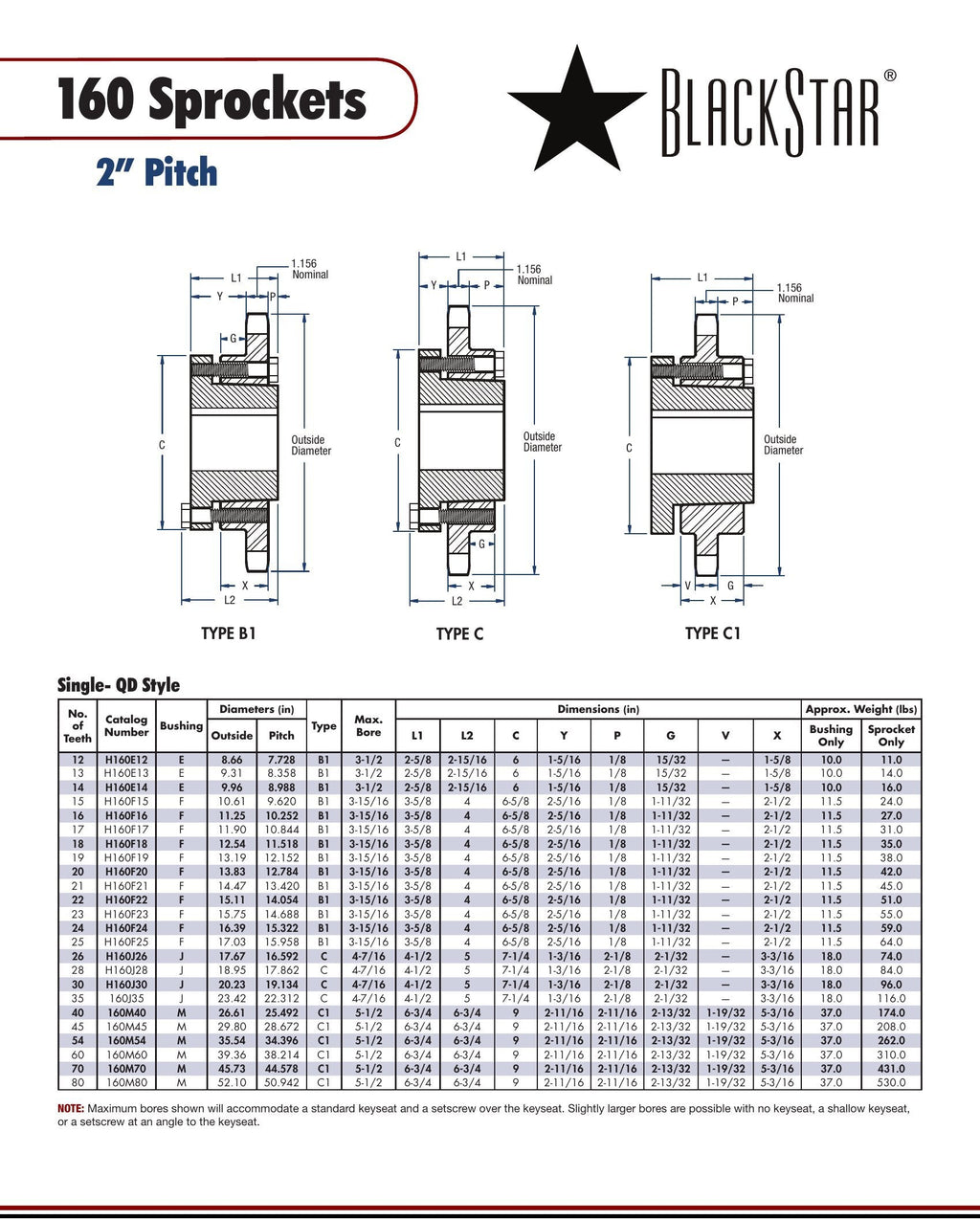

BlackStar 160U80 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Bushing Spec Sheet

Cross-references: Browning 160U80, Martin 160U80
