Description
The BlackStar 50SDS31 is a 50 pitch QD roller chain sprocket with 31 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SDS Bushing (sold separately).

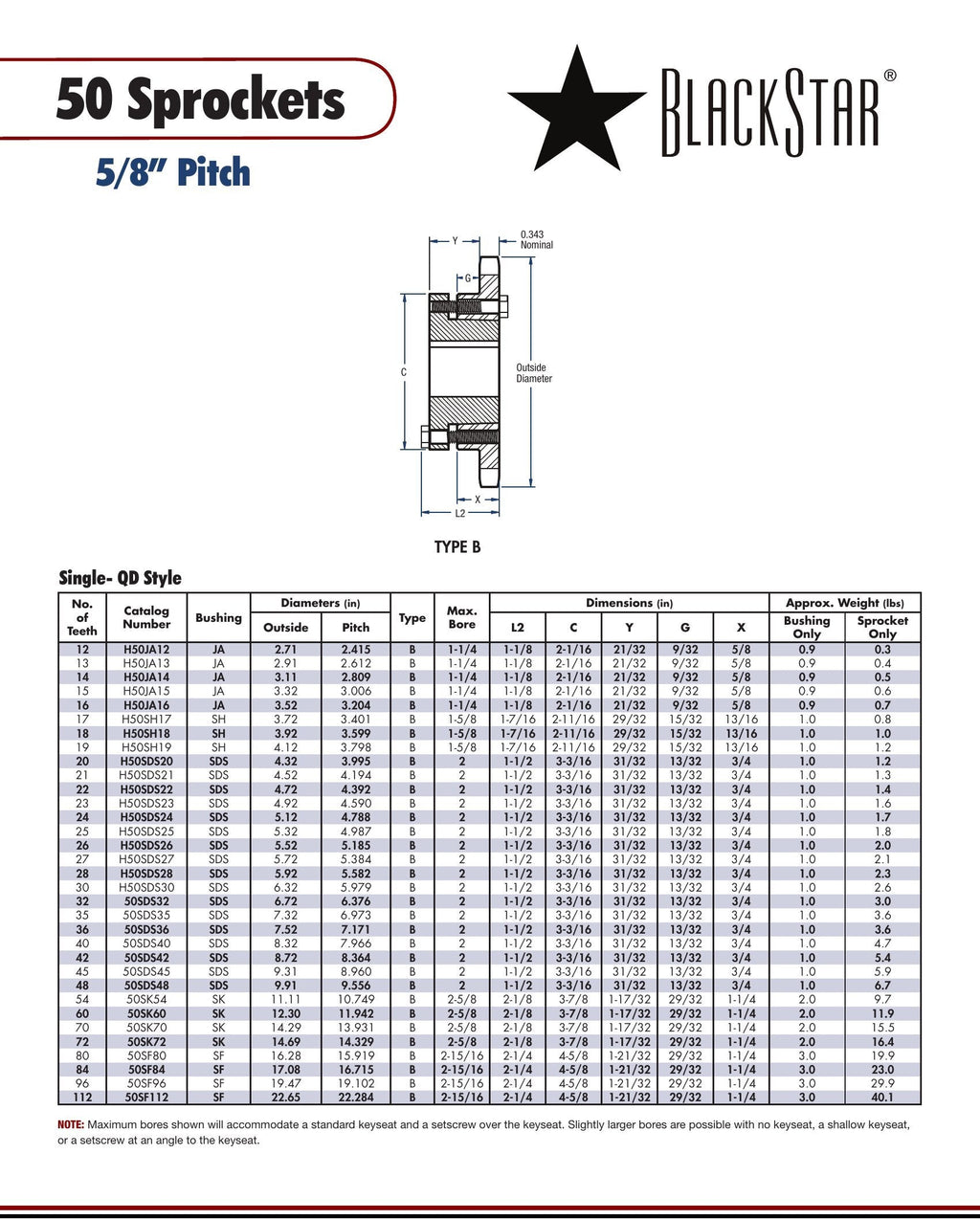

| Specifications | |
|---|---|
| Part Number | 50SDS31 |
| Chain Pitch | 50 |
| Number of Teeth | 31 |
| Bore Type | QD |
| Hub Style | QD |
| Bushing Required | QD Type SDS Bushing |
| Strand Count | Single |
| Material | Steel |
| Outside Diameter | 6.52" |
| Pitch Diameter | 6.178" |
| Approx. Weight | 3.200 lbs |

Bushing Required
This sprocket requires a QD Type SDS Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Browning 50SDS31, Martin 50SDS31
