BlackStar D100F35 - Double Strand 100 Pitch QD Sprocket - 35 Tooth


Price:
$ 745.04

Description

The BlackStar D100F35 is a 100 pitch double strand QD roller chain sprocket with 35 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number D100F35
Chain Pitch 100
Number of Teeth 35
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Double
Material Steel
Outside Diameter 14.64"
Pitch Diameter 13.945"
Approx. Weight 73.0 lbs

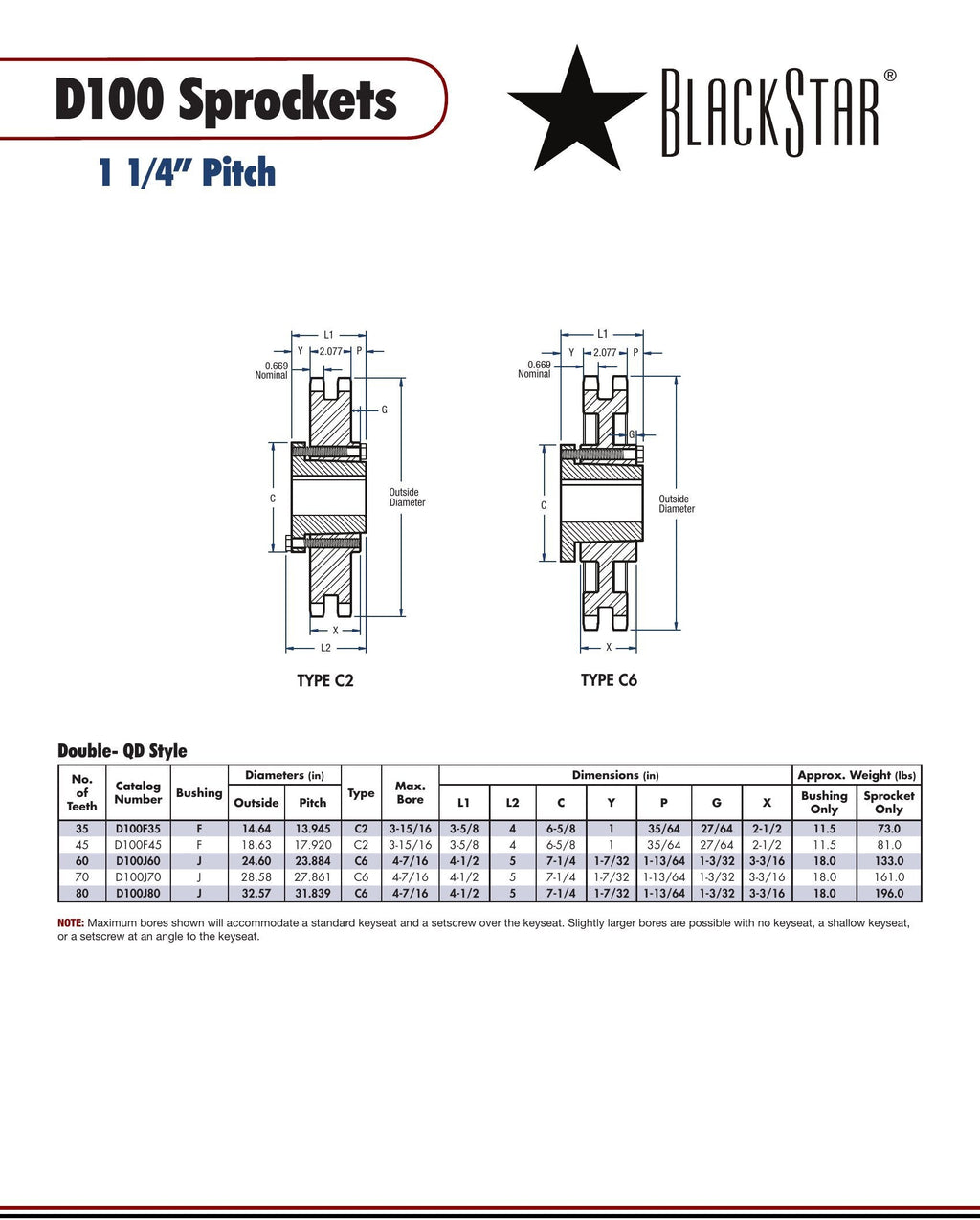

BlackStar D100F35 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning D100F35, Martin D100F35
