BlackStar D100J60 - Double Strand 100 Pitch QD Sprocket - 60 Tooth


Price:
$ 1,834.16

Description

The BlackStar D100J60 is a 100 pitch double strand QD roller chain sprocket with 60 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type J Bushing (sold separately).

Specifications
Part Number D100J60
Chain Pitch 100
Number of Teeth 60
Maximum Bore 4-7/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type J Bushing
Strand Count Double
Material Steel
Outside Diameter 24.60"
Pitch Diameter 23.884"
Approx. Weight 133.0 lbs

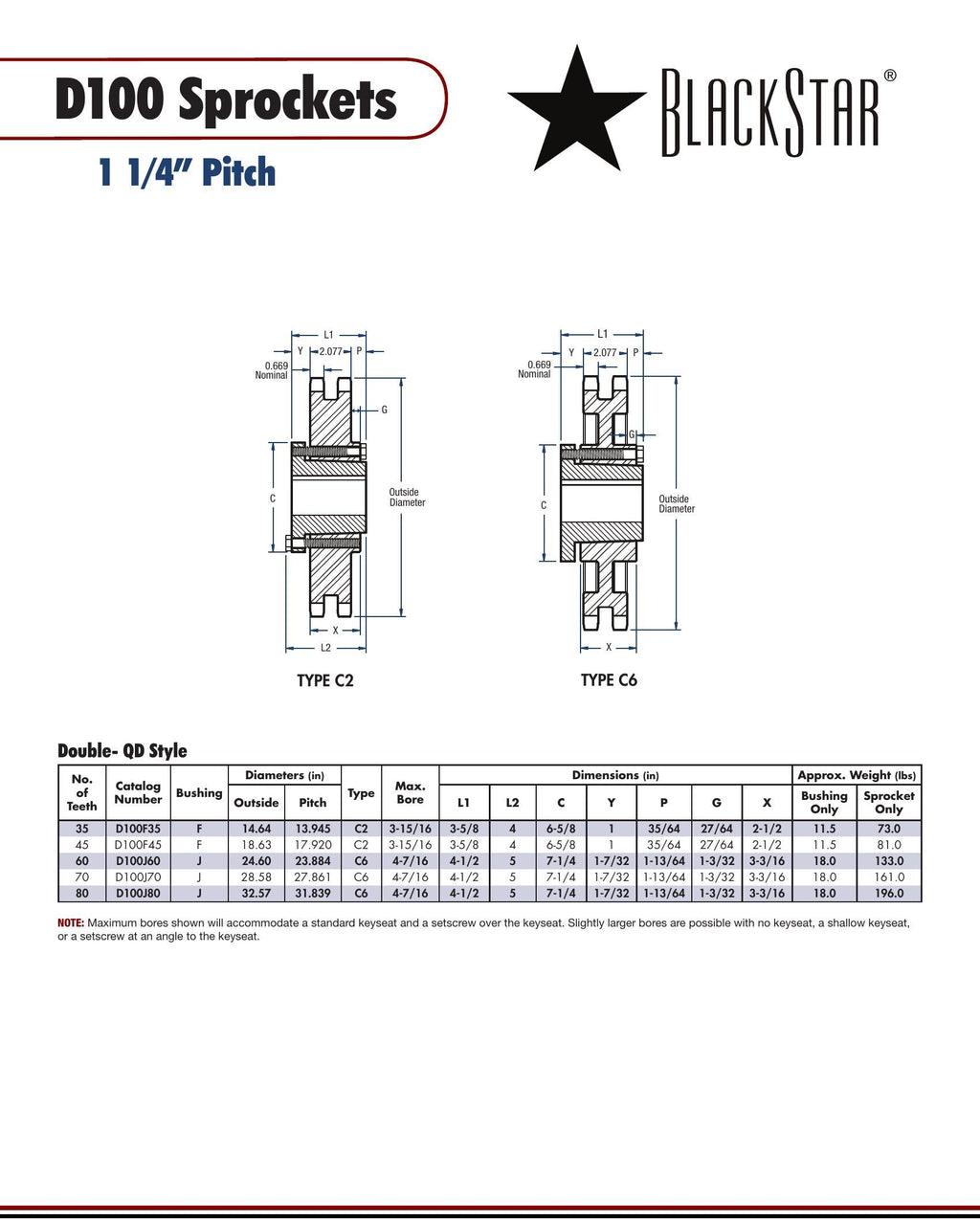

BlackStar D100J60 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type J Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type J Bushing Spec Sheet

Cross-references: Browning D100J60, Martin D100J60

Compatible Components

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
