BlackStar D100J70 - Double Strand 100 Pitch QD Sprocket - 70 Tooth


Price:
$ 2,323.57

Description

The BlackStar D100J70 is a 100 pitch double strand QD roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type J Bushing (sold separately).

Specifications
Part Number D100J70
Chain Pitch 100
Number of Teeth 70
Maximum Bore 4-7/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type J Bushing
Strand Count Double
Material Steel
Outside Diameter 28.58"
Pitch Diameter 27.861"
Approx. Weight 161.0 lbs

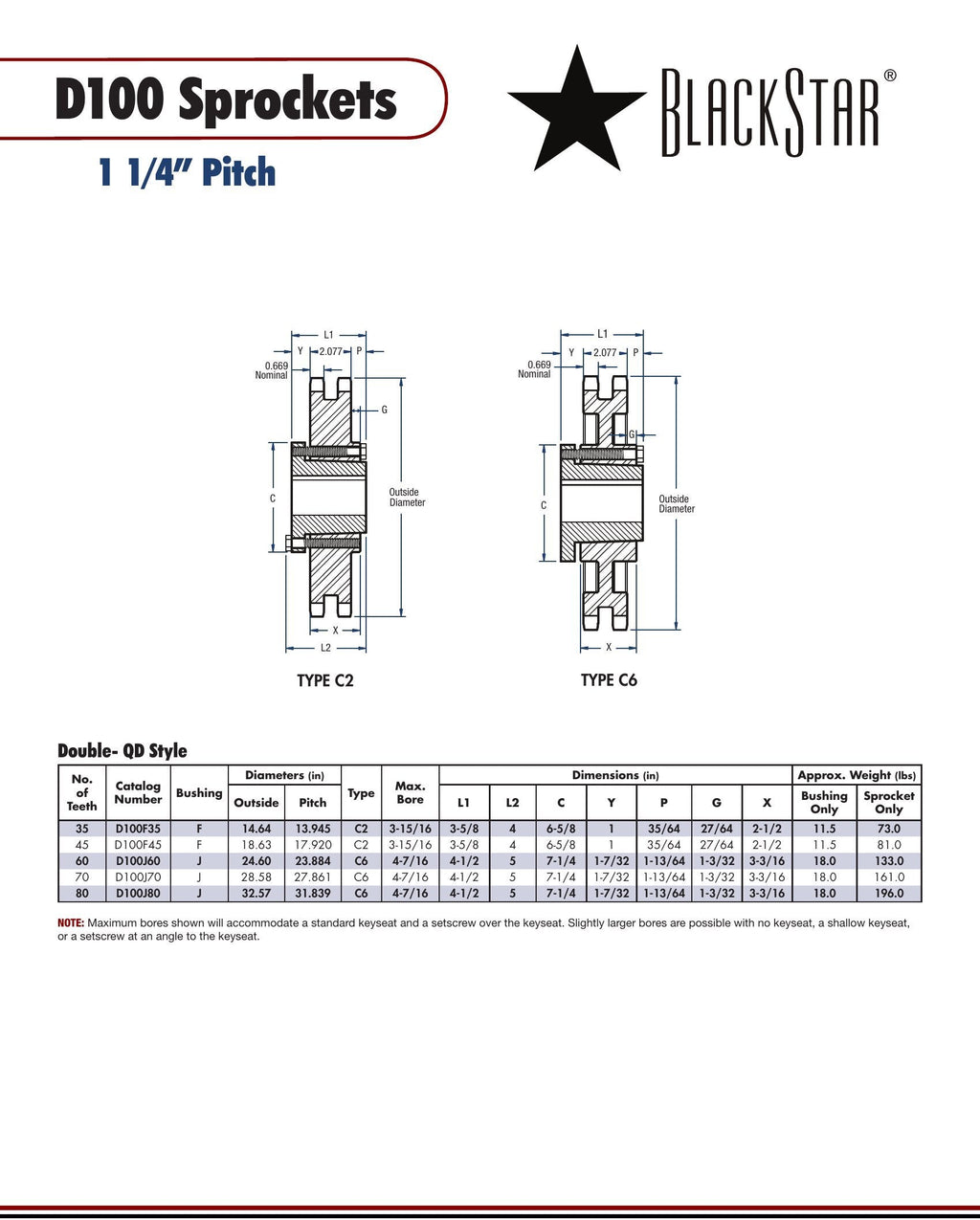

BlackStar D100J70 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type J Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type J Bushing Spec Sheet

Cross-references: Browning D100J70, Martin D100J70
