BlackStar D100S70 - Double Strand 100 Pitch Split Taper Sprocket - 70 Tooth


Price:
$ 2,599.13

Description

The BlackStar D100S70 is a 100 pitch double strand Split Taper roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number D100S70
Chain Pitch 100
Number of Teeth 70
Bore Type Plain Bore
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Double
Material Steel
Outside Diameter 28.58"
Pitch Diameter 27.861"
Approx. Weight 358.000 lbs
BlackStar D100S70 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

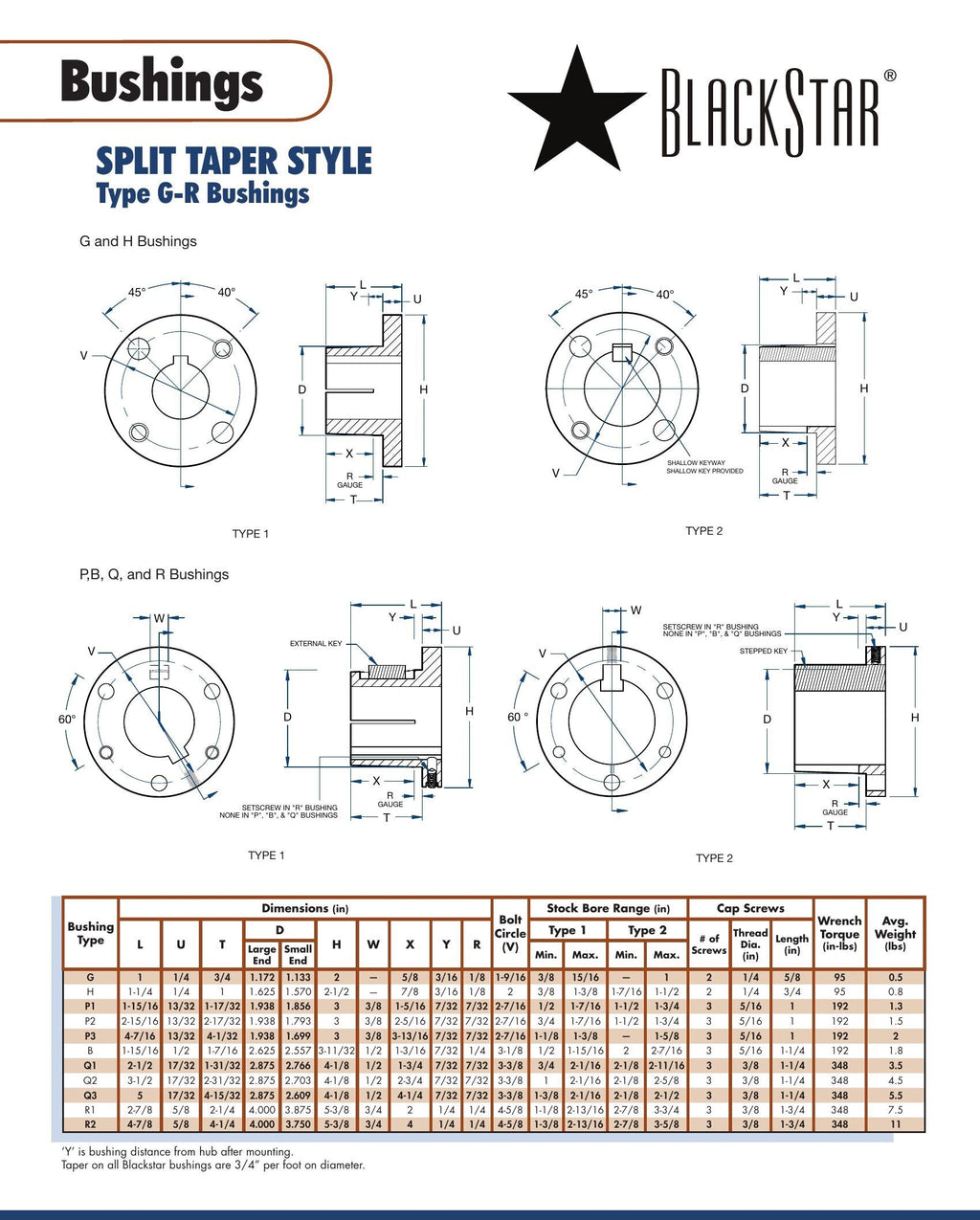

BlackStar Split Taper Bushing Spec Sheet
