BlackStar D140BTL36H - Double Strand 140 Pitch Taper Lock Sprocket - 36 Tooth


Price:
$ 3,158.03

Description

The BlackStar D140BTL36H is a 140 pitch double strand Taper Lock roller chain sprocket with 36 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D140BTL36H
Chain Pitch 140
Number of Teeth 36
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 21.05"
Pitch Diameter 20.079"
Approx. Weight 225.200 lbs

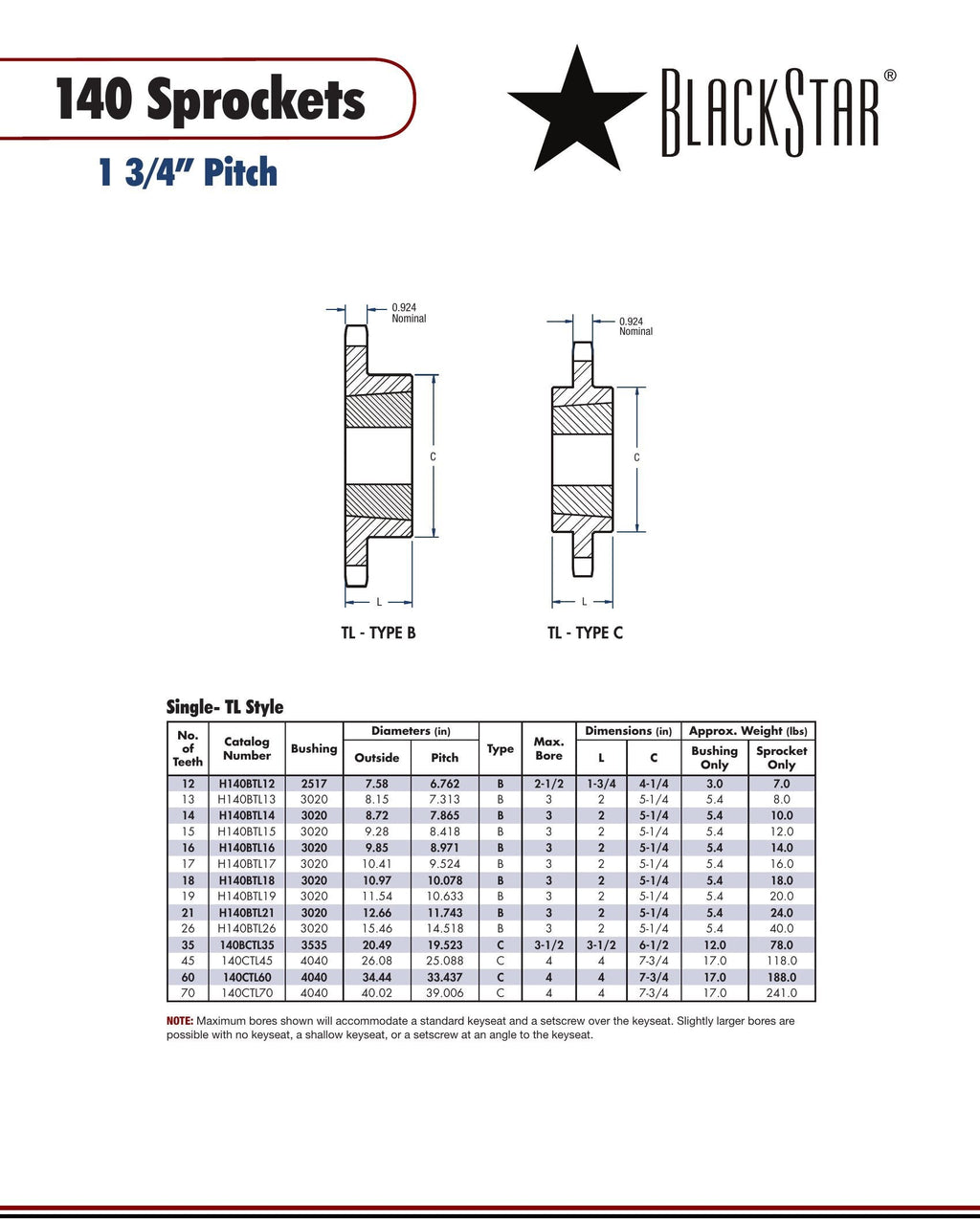

BlackStar D140BTL36H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D140TB36, Browning D140TB36
