BlackStar D50ATL17H - Double Strand 50 Pitch Taper Lock Sprocket - 17 Tooth


Price:
$ 40.82

Description

The BlackStar D50ATL17H is a 50 pitch double strand Taper Lock roller chain sprocket with 17 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D50ATL17H
Chain Pitch 50
Number of Teeth 17
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 3.72"
Pitch Diameter 3.401"
Approx. Weight 0.600 lbs

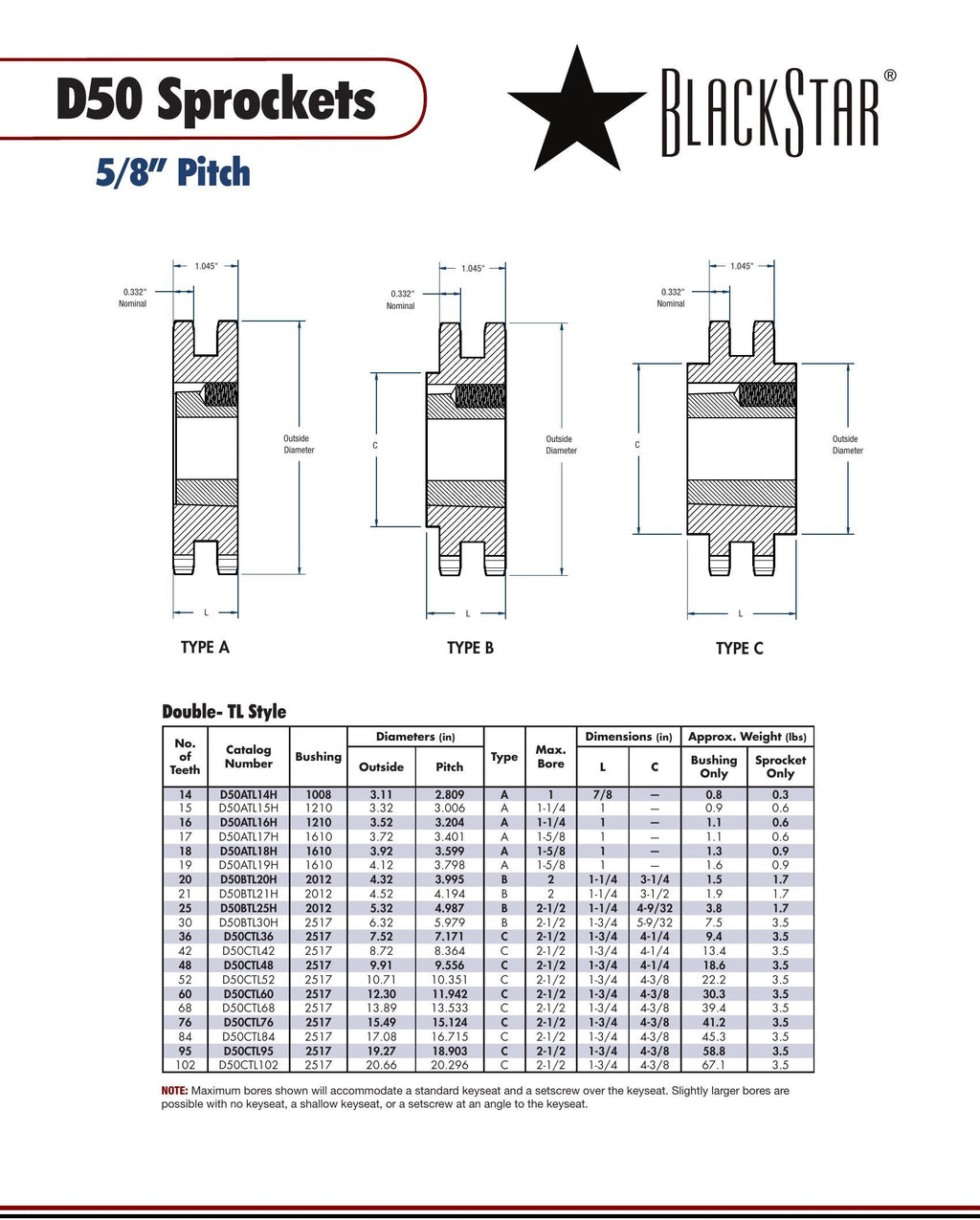

BlackStar D50ATL17H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D50TB17, Browning D50TB17
