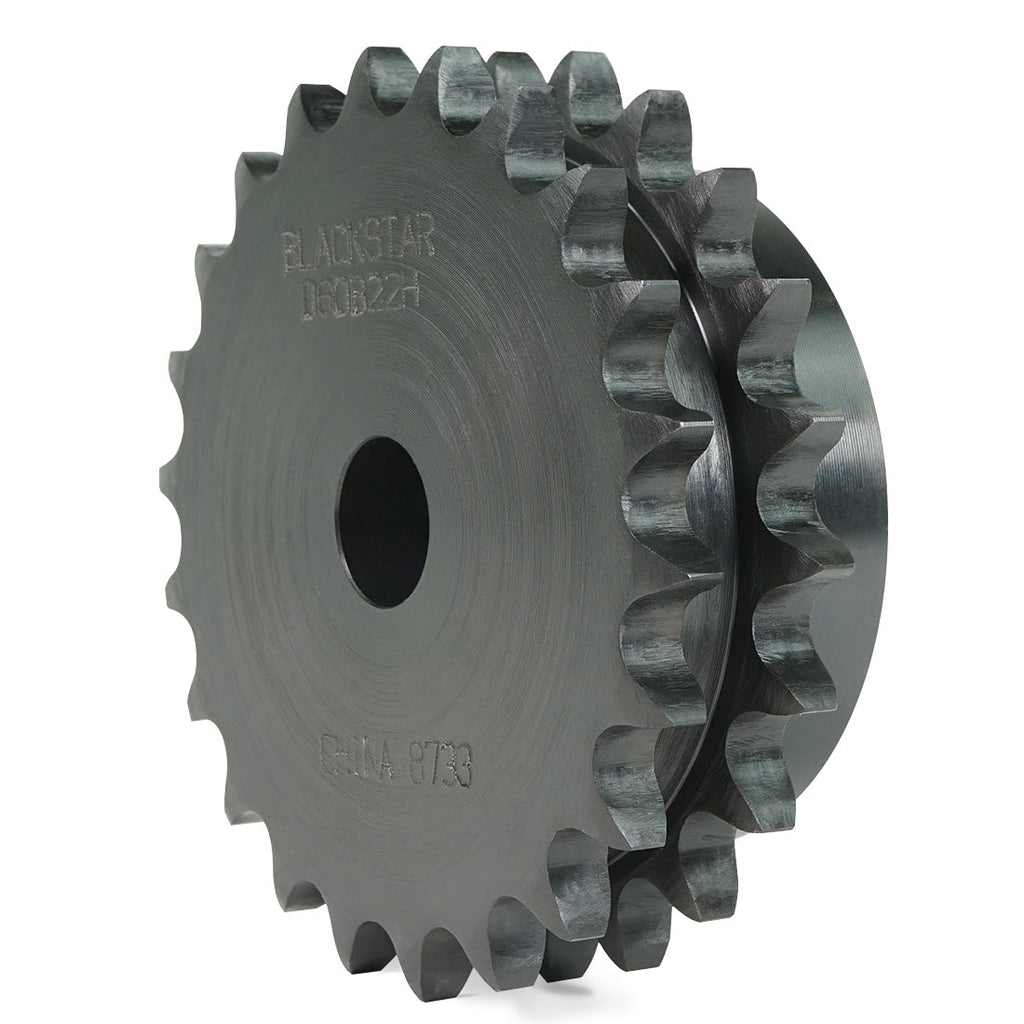

BlackStar D50P22H - Double Strand 50 Pitch Split Taper Sprocket - 22 Tooth


Price:
$ 51.52

Description

The BlackStar D50P22H is a 50 pitch double strand Split Taper roller chain sprocket with 22 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number D50P22H
Chain Pitch 50
Number of Teeth 22
Bore Type Split Taper
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Double
Material Steel
Outside Diameter 4.72"
Pitch Diameter 4.392"
Approx. Weight 3.200 lbs

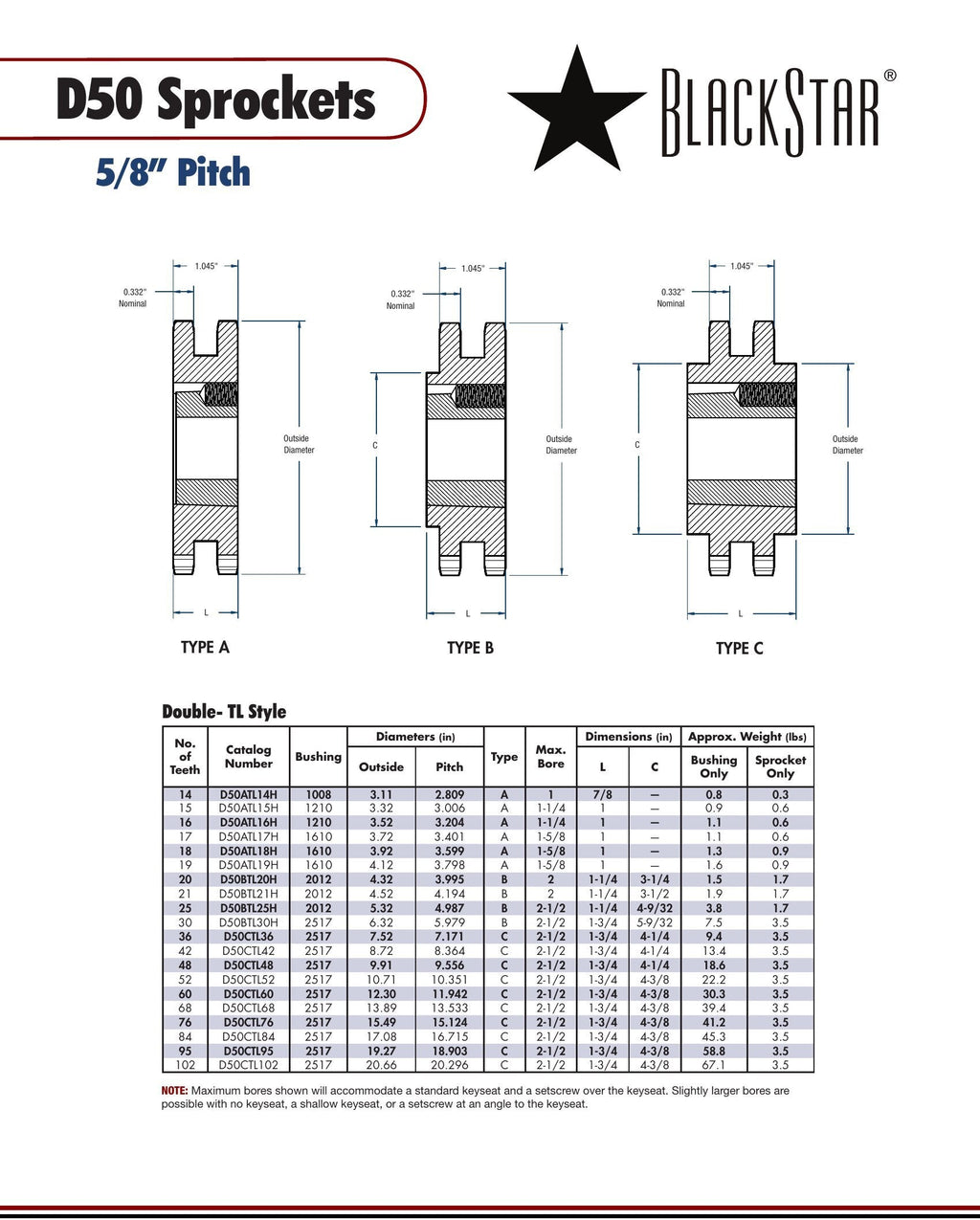

BlackStar D50P22H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Split Taper Bushing Spec Sheet

Cross-references: Browning D50P22, Martin D50P22

Compatible Components

Matched Roller Chain

Shop all 52 matched options ›

Matched Roller Chain

Shop all 52 matched options ›

Matched Roller Chain

Shop all 52 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
