BlackStar D50SF54 - Double Strand 50 Pitch QD Sprocket - 54 Tooth


Price:
$ 205.58

Description

The BlackStar D50SF54 is a 50 pitch double strand QD roller chain sprocket with 54 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number D50SF54
Chain Pitch 50
Number of Teeth 54
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Double
Material Steel
Outside Diameter 11.11"
Pitch Diameter 10.749"
Approx. Weight 23.2 lbs

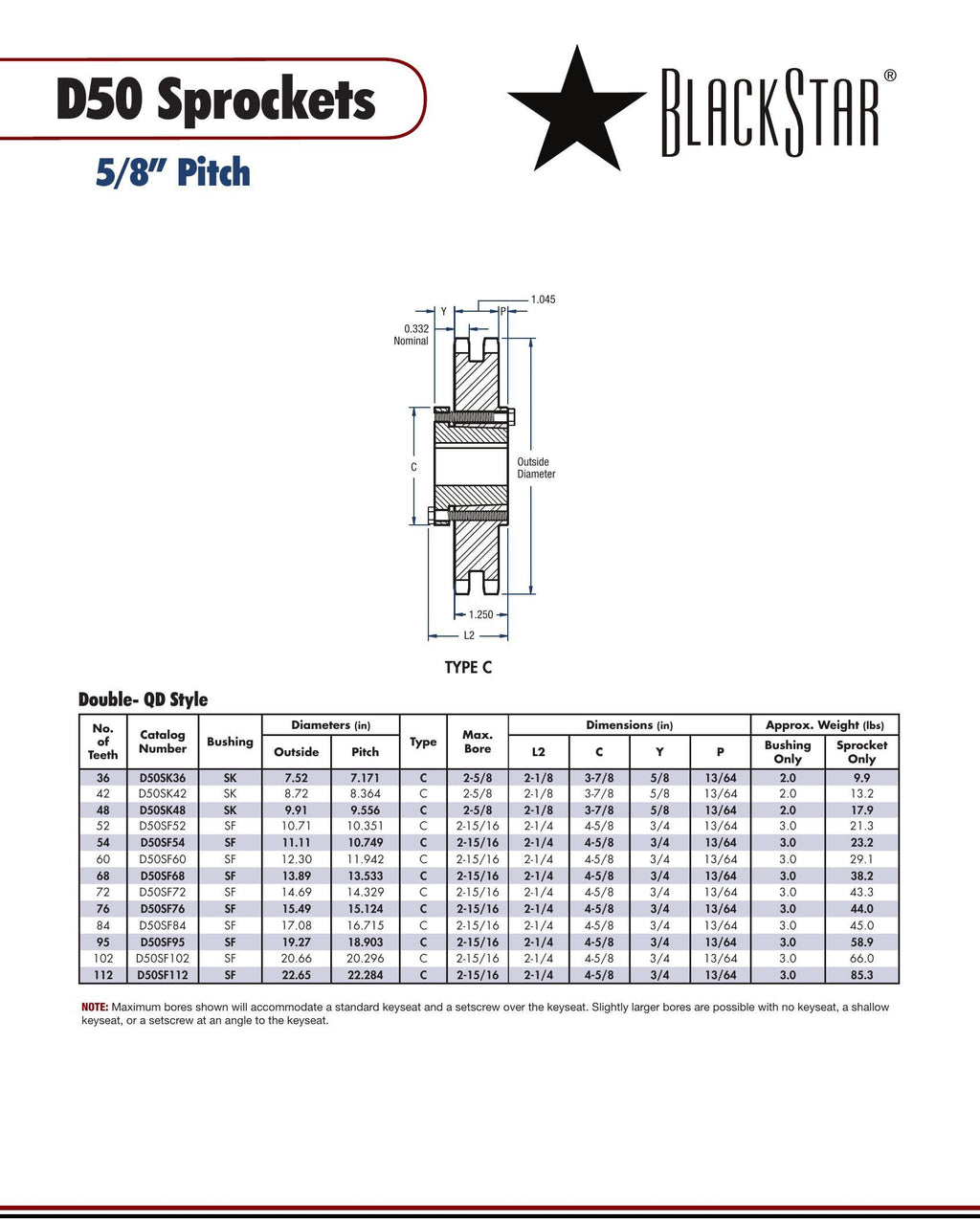

BlackStar D50SF54 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning D50SF54, Martin D50SF54
