Description

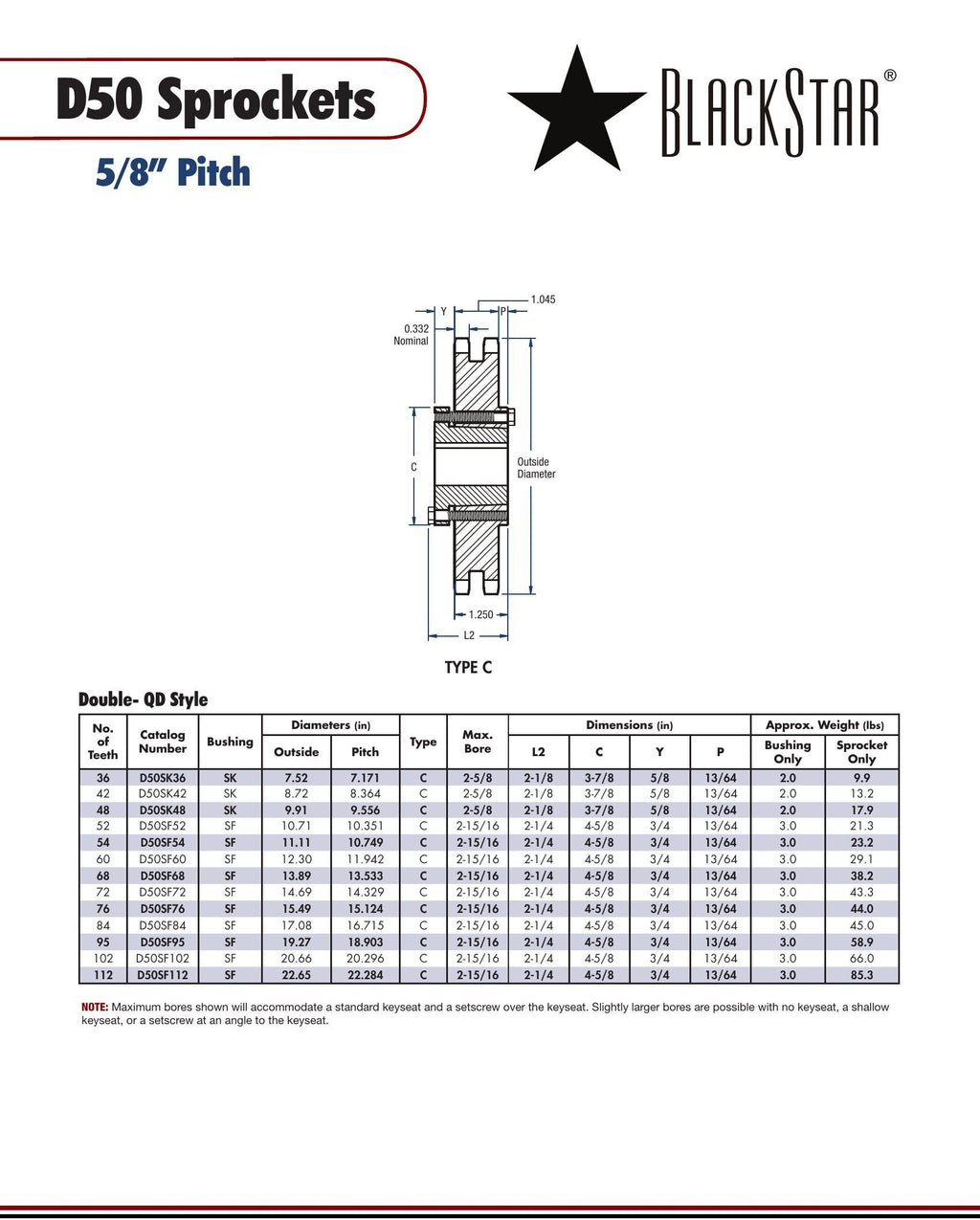

The BlackStar D50SK36 is a 50 pitch double strand QD roller chain sprocket with 36 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SK Bushing (sold separately).
| Specifications | |
|---|---|
| Part Number | D50SK36 |
| Chain Pitch | 50 |
| Number of Teeth | 36 |
| Maximum Bore | 2-5/8" |
| Bore Type | QD |
| Hub Style | QD |
| Bushing Required | QD Type SK Bushing |
| Strand Count | Double |
| Material | Steel |
| Outside Diameter | 7.52" |
| Pitch Diameter | 7.171" |
| Approx. Weight | 9.9 lbs |

Bushing Required
This sprocket requires a QD Type SK Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Browning D50SK36, Martin D50SK36
