BlackStar DS100ATL20H - Double-Single 100 Pitch Taper Lock Sprocket - 20 Tooth


Price:
$ 268.27

Description

The BlackStar DS100ATL20H is a 100 pitch double-single strand Taper Lock roller chain sprocket with 20 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number DS100ATL20H
Chain Pitch 100
Number of Teeth 20
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double-Single
Material Steel
Outside Diameter 8.64"
Pitch Diameter 7.990"
Approx. Weight 27.500 lbs
BlackStar DS100ATL20H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

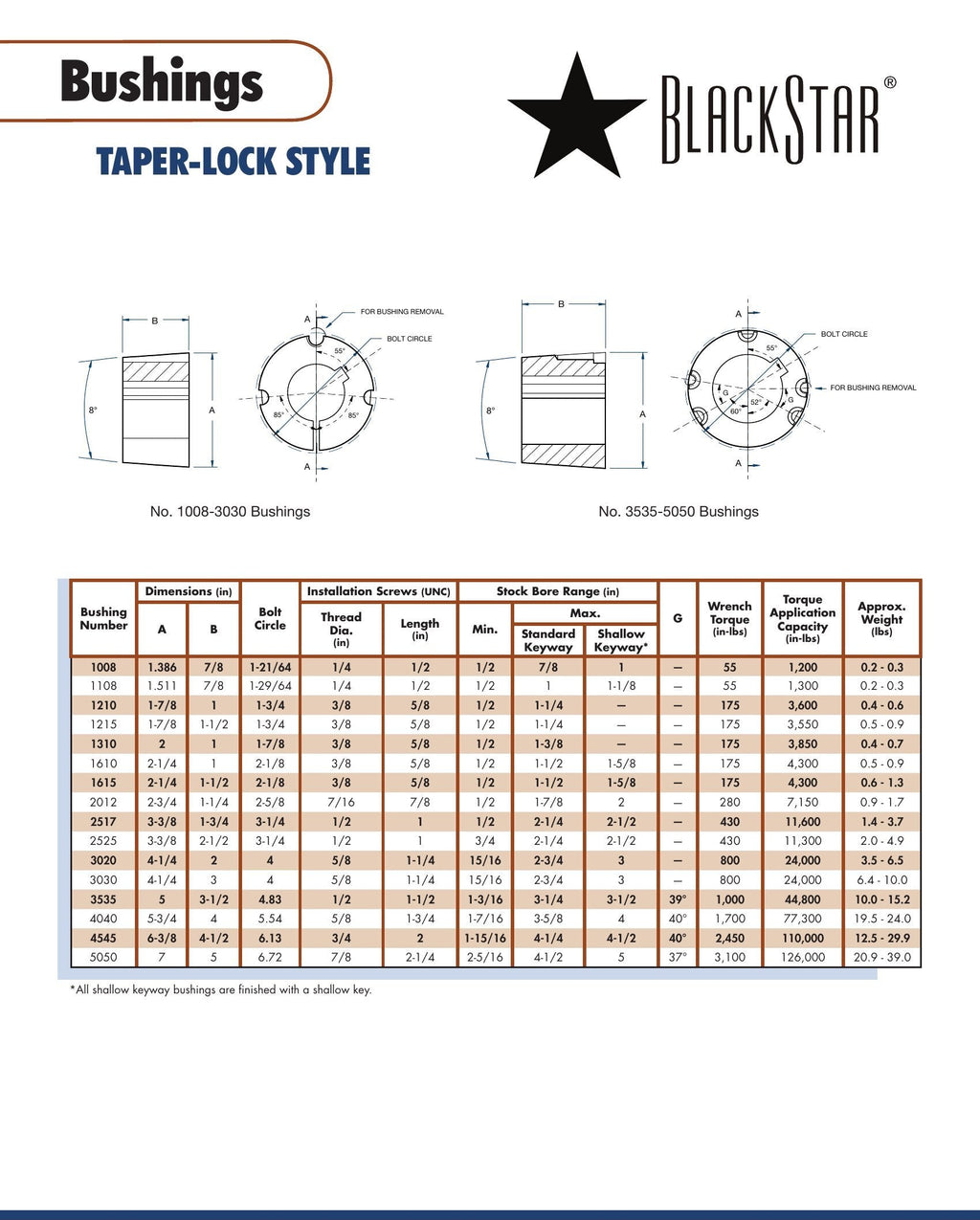

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D100TB20, Browning D100TB20
