Description
The BlackStar H100BTL24 is a 100 pitch Taper Lock roller chain sprocket with 24 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

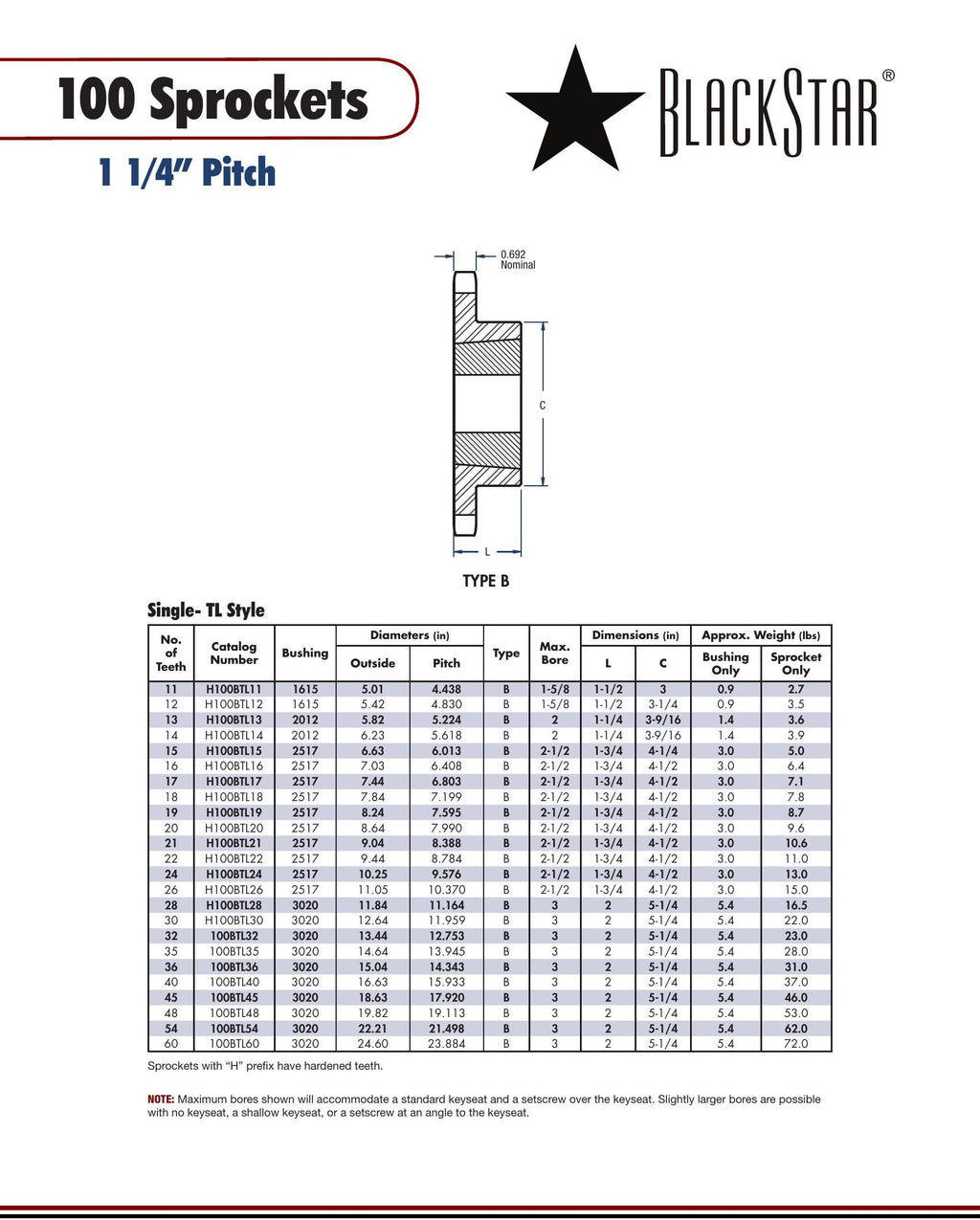

| Specifications | |
|---|---|
| Part Number | H100BTL24 |
| Chain Pitch | 100 |
| Number of Teeth | 24 |
| Bore Type | Taper Lock |
| Hub Style | Taper Lock |
| Bushing Required | Taper Lock Bushing |
| Strand Count | Single |
| Material | Steel |
| Hardened Teeth | Yes |
| Outside Diameter | 10.25" |
| Pitch Diameter | 9.576" |
| Approx. Weight | 13.0 lbs |

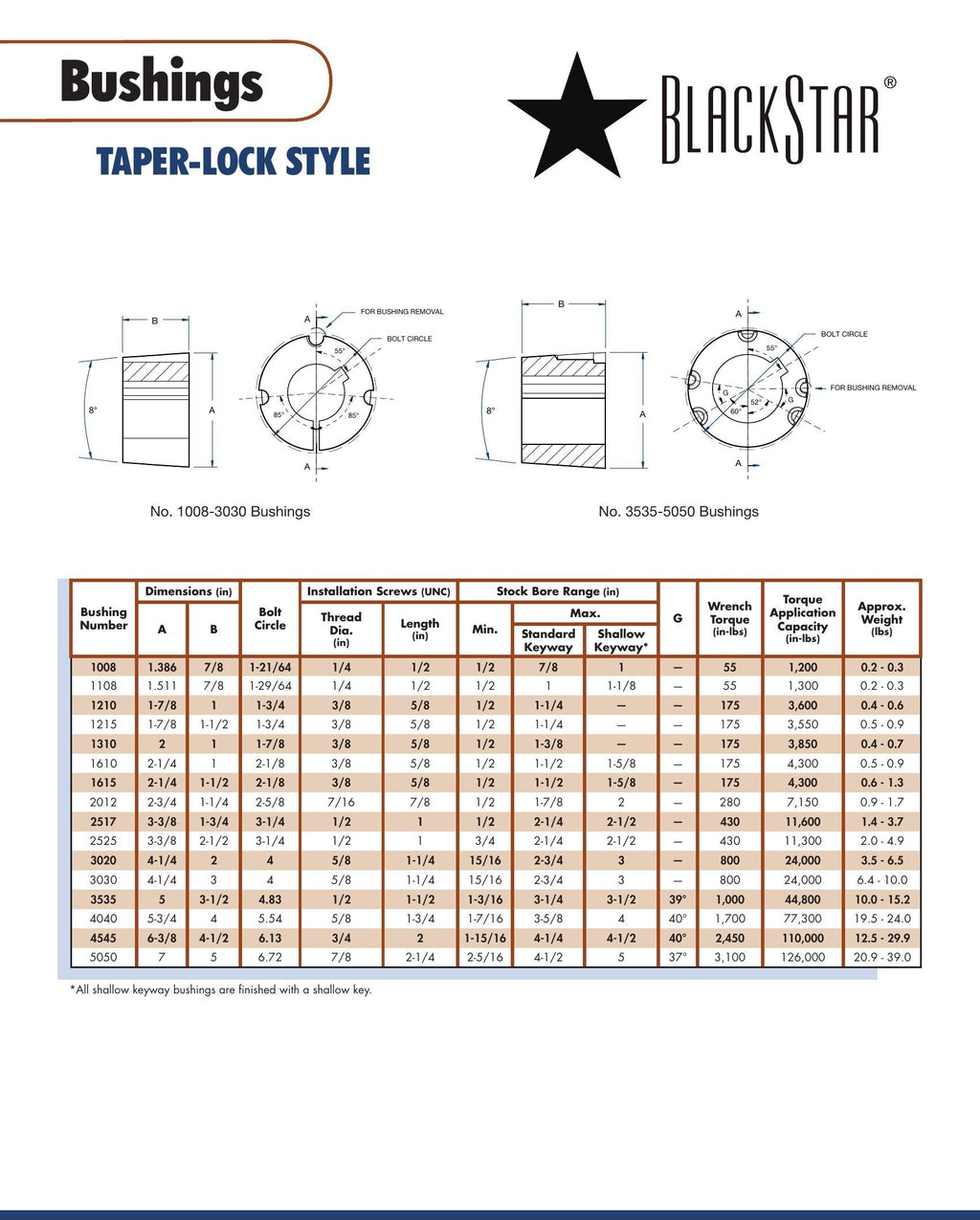

Bushing Required
This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Martin 100TB24, Browning 100TB24
