BlackStar H100E24 - 100 Pitch QD Sprocket - 24 Tooth


Price:
$ 112.75

Description

The BlackStar H100E24 is a 100 pitch QD roller chain sprocket with 24 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number H100E24
Chain Pitch 100
Number of Teeth 24
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 10.25"
Pitch Diameter 9.576"
Approx. Weight 15.7 lbs

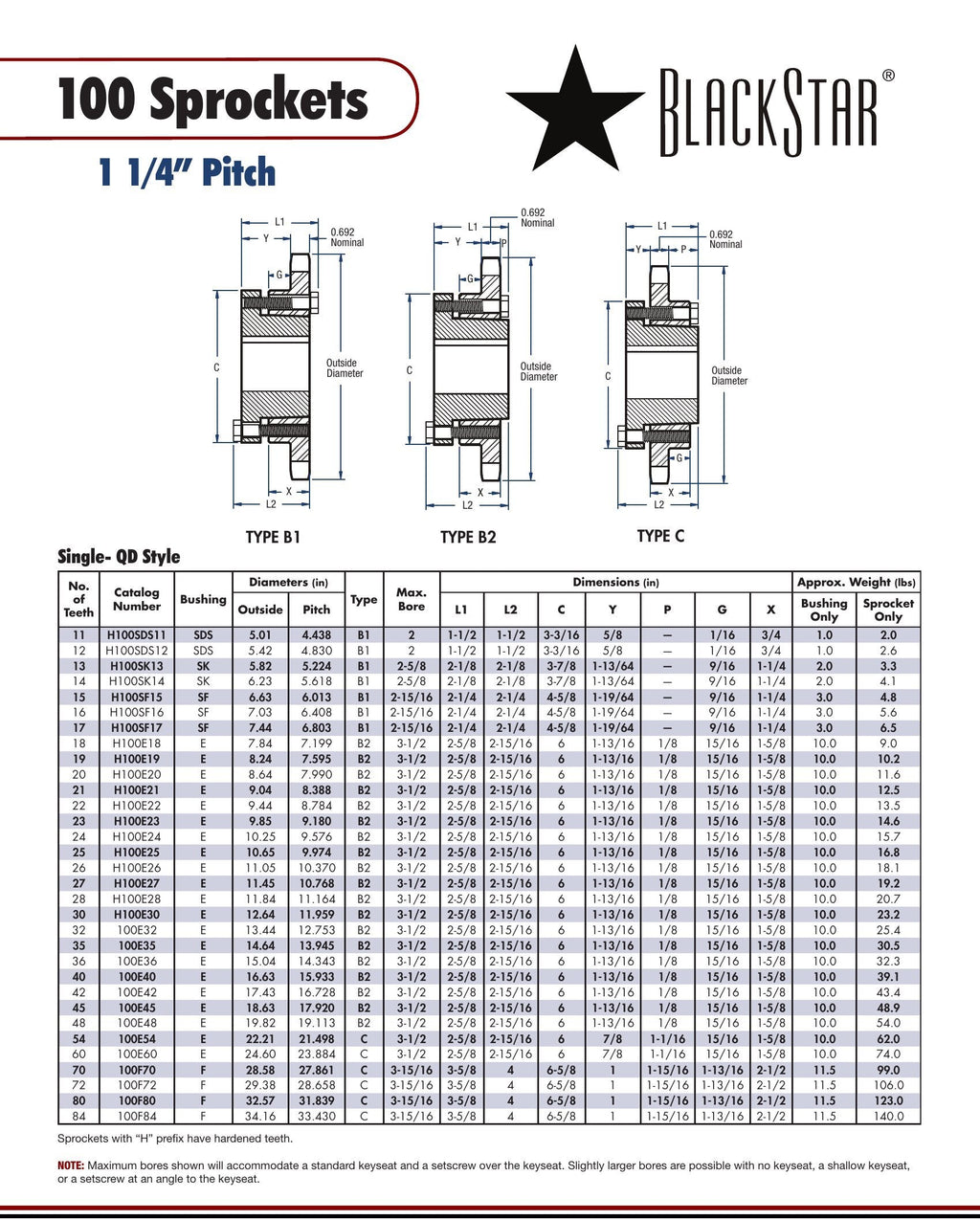

BlackStar H100E24 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet
