BlackStar H140BS22 3 11/16 K2S - 140 Pitch Finished Bore Sprocket - 22 Tooth - 3-11/16" Bore


Price:
$ 344.57

Description

The BlackStar H140BS22 3 11/16 K2S is a 140 pitch Finished Bore roller chain sprocket with 22 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket has a 3-11/16" bore with keyway and set screws and is ready for immediate installation.

Specifications
Part Number H140BS22 3 11/16 K2S
Chain Pitch 140
Number of Teeth 22
Bore Size 3-11/16"
Bore Type Finished Bore (Keyway + Set Screws)
Hub Style Finished Bore
Strand Count Single
Material Steel
Hardened Teeth Yes
Approx. Weight 89.72 lbs

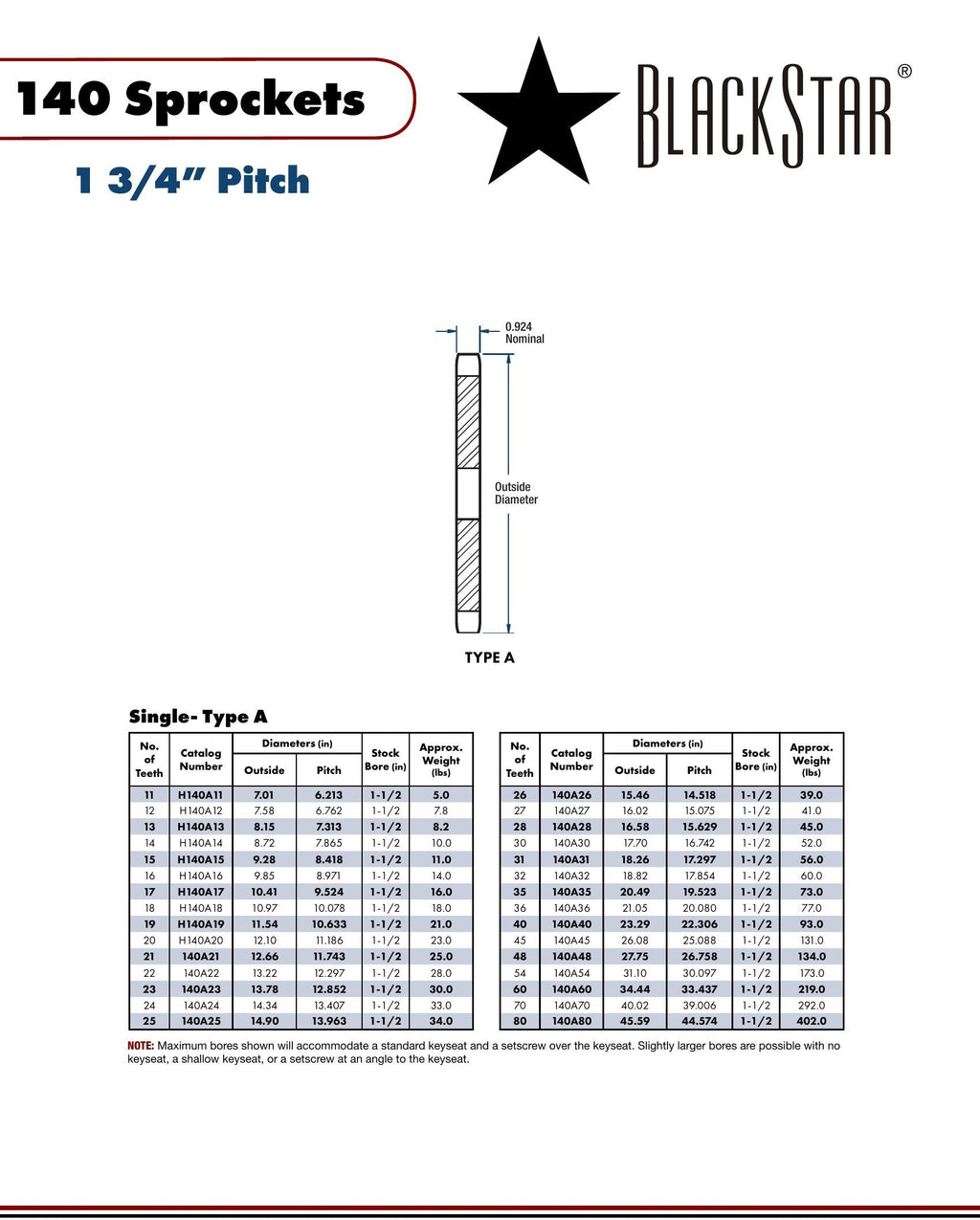

BlackStar H140BS22 3 11/16 K2S Sprocket Spec Sheet

Cross-references: Martin 140BS22, Browning H140B22
