BlackStar H140BTL16 - 140 Pitch Taper Lock Sprocket - 16 Tooth


Price:
$ 216.76

Description

The BlackStar H140BTL16 is a 140 pitch Taper Lock roller chain sprocket with 16 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number H140BTL16
Chain Pitch 140
Number of Teeth 16
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 9.85"
Pitch Diameter 8.971"
Approx. Weight 14.0 lbs

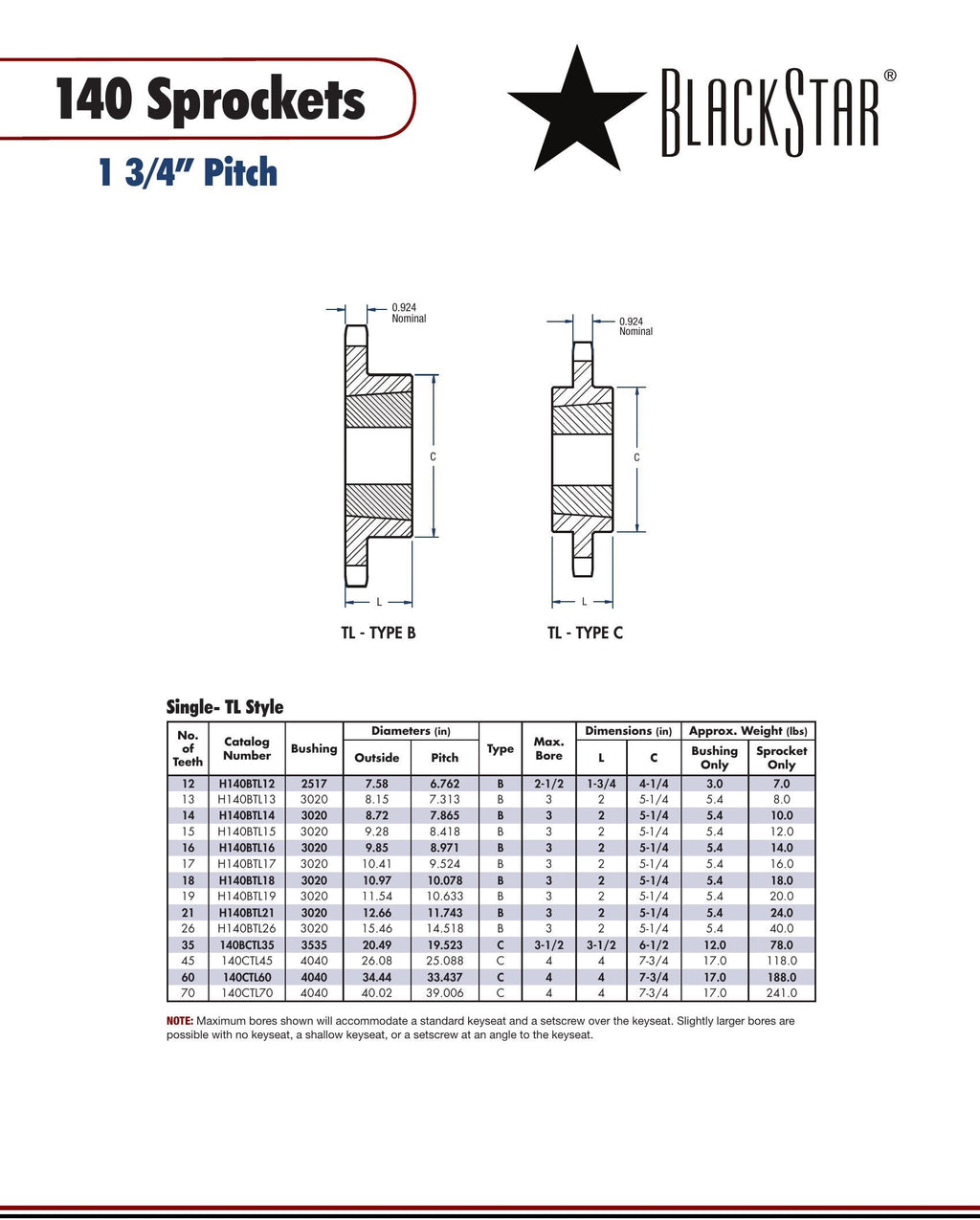

BlackStar H140BTL16 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 140TB16, Browning 140TB16
