BlackStar H140E20 - 140 Pitch QD Sprocket - 20 Tooth


Price:
$ 265.36

Description

The BlackStar H140E20 is a 140 pitch QD roller chain sprocket with 20 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number H140E20
Chain Pitch 140
Number of Teeth 20
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 12.10"
Pitch Diameter 11.186"
Approx. Weight 24.6 lbs

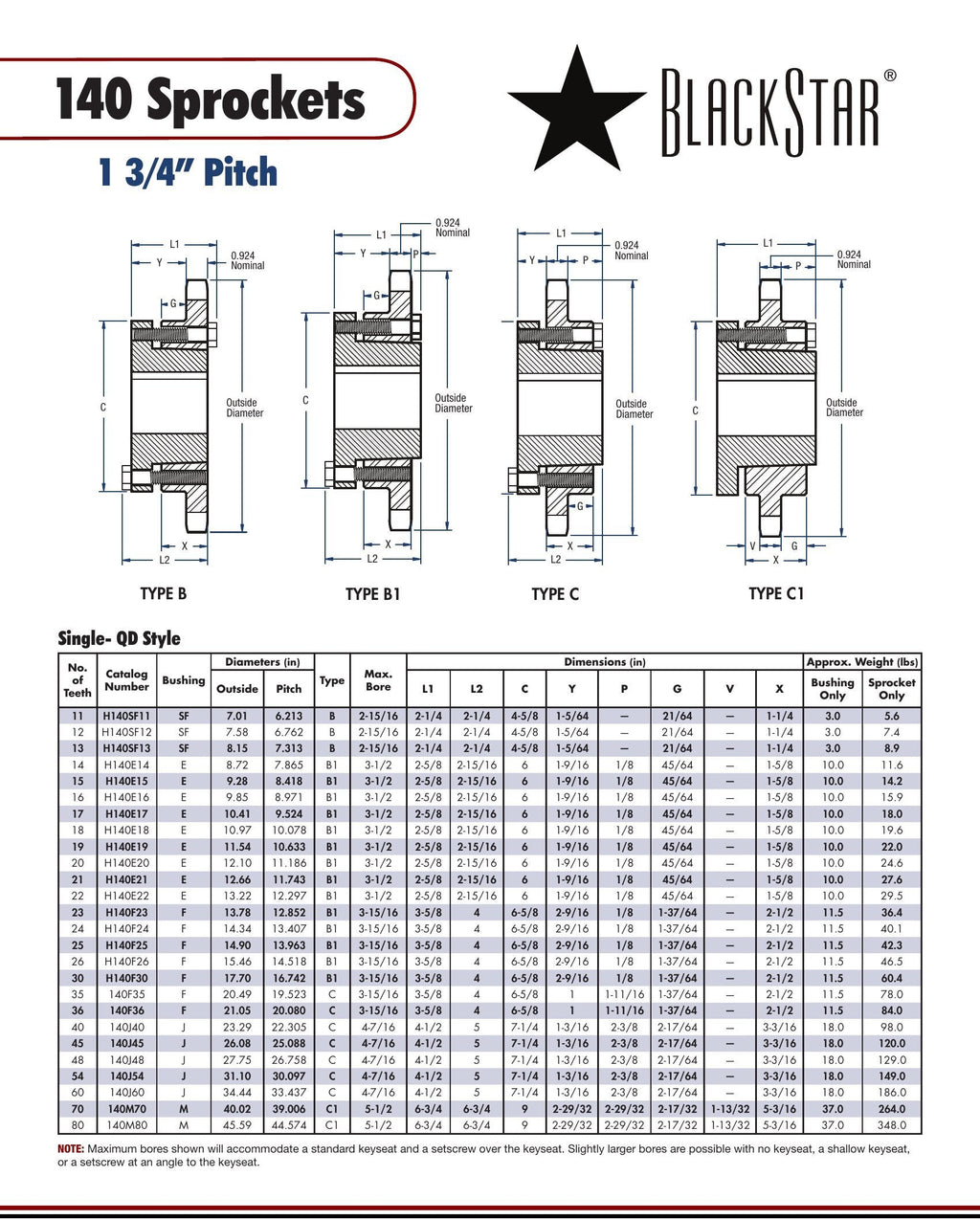

BlackStar H140E20 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet
