BlackStar H140SF11 - 140 Pitch QD Sprocket - 11 Tooth


Price:
$ 140.45

Description

The BlackStar H140SF11 is a 140 pitch QD roller chain sprocket with 11 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number H140SF11
Chain Pitch 140
Number of Teeth 11
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 7.01"
Pitch Diameter 6.213"
Approx. Weight 5.6 lbs

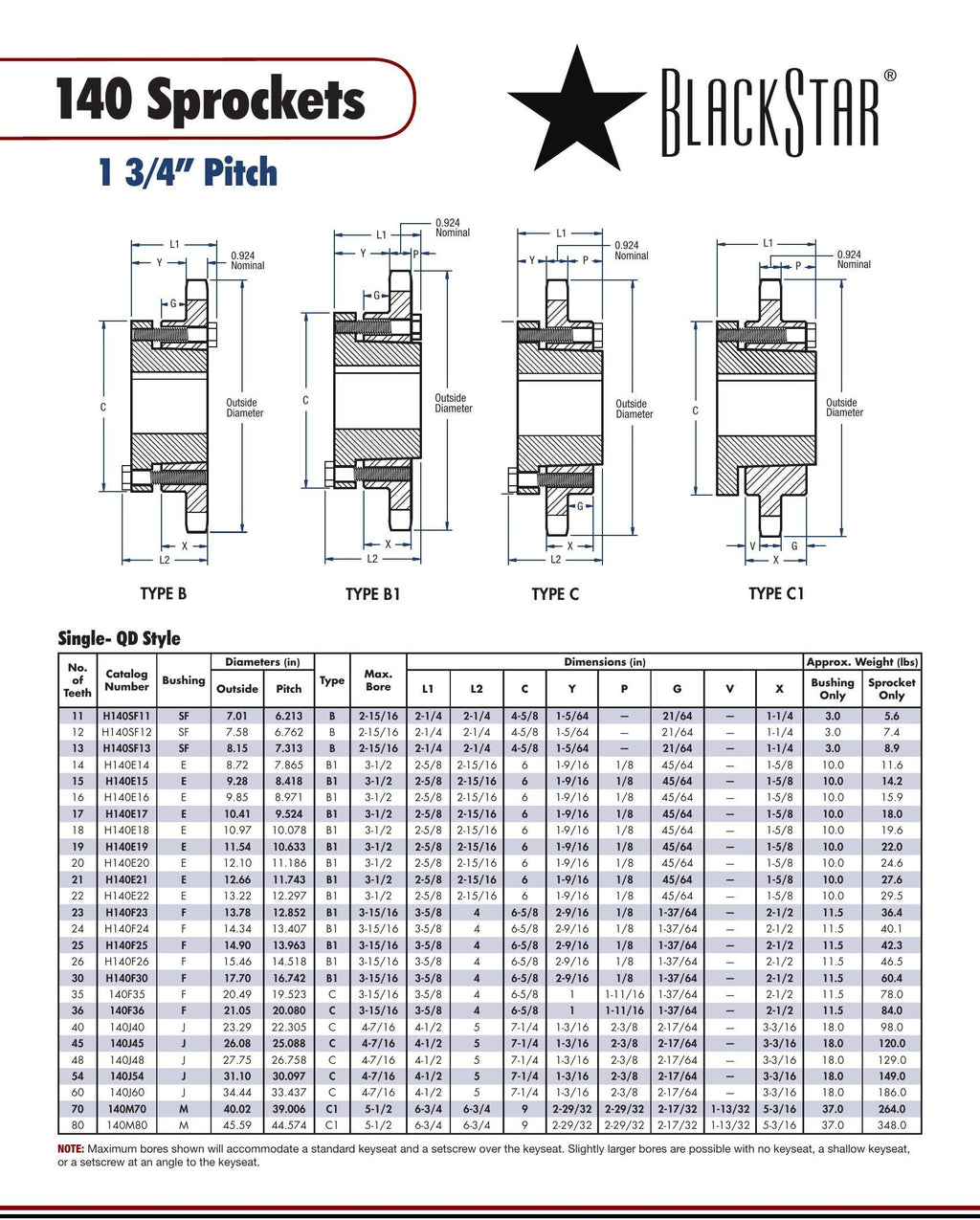

BlackStar H140SF11 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet
