BlackStar H160E14 - 160 Pitch QD Sprocket - 14 Tooth


Price:
$ 234.74

Description

The BlackStar H160E14 is a 160 pitch QD roller chain sprocket with 14 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number H160E14
Chain Pitch 160
Number of Teeth 14
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 9.96"
Pitch Diameter 8.988"
Approx. Weight 16.0 lbs

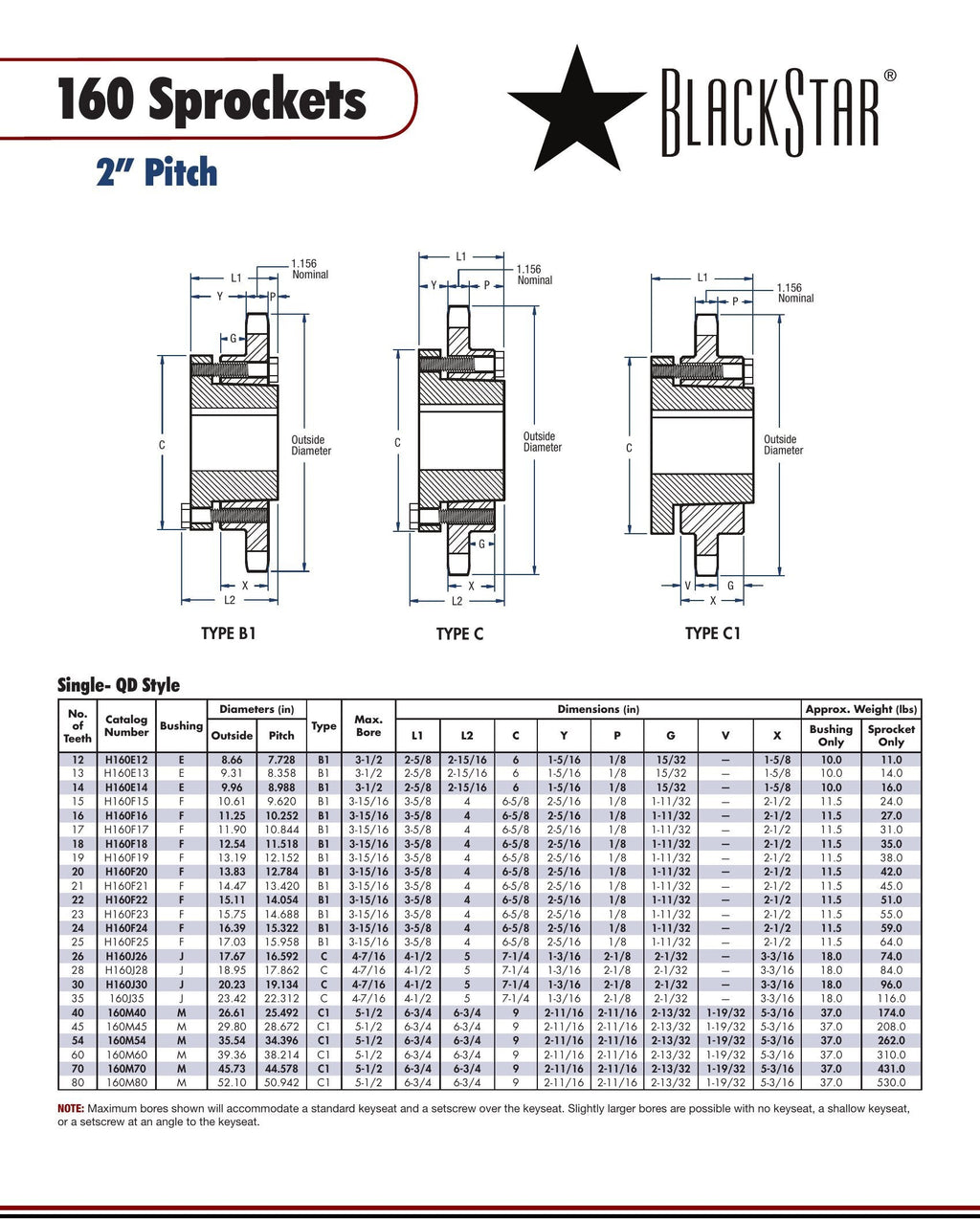

BlackStar H160E14 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet
