BlackStar H41BTL23 - 41 Pitch Taper Lock Sprocket - 23 Tooth


Price:
$ 29.16

Description

The BlackStar H41BTL23 is a 41 pitch Taper Lock roller chain sprocket with 23 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number H41BTL23
Chain Pitch 41
Number of Teeth 23
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 3.94"
Pitch Diameter 3.672"
Approx. Weight 1.4 lbs

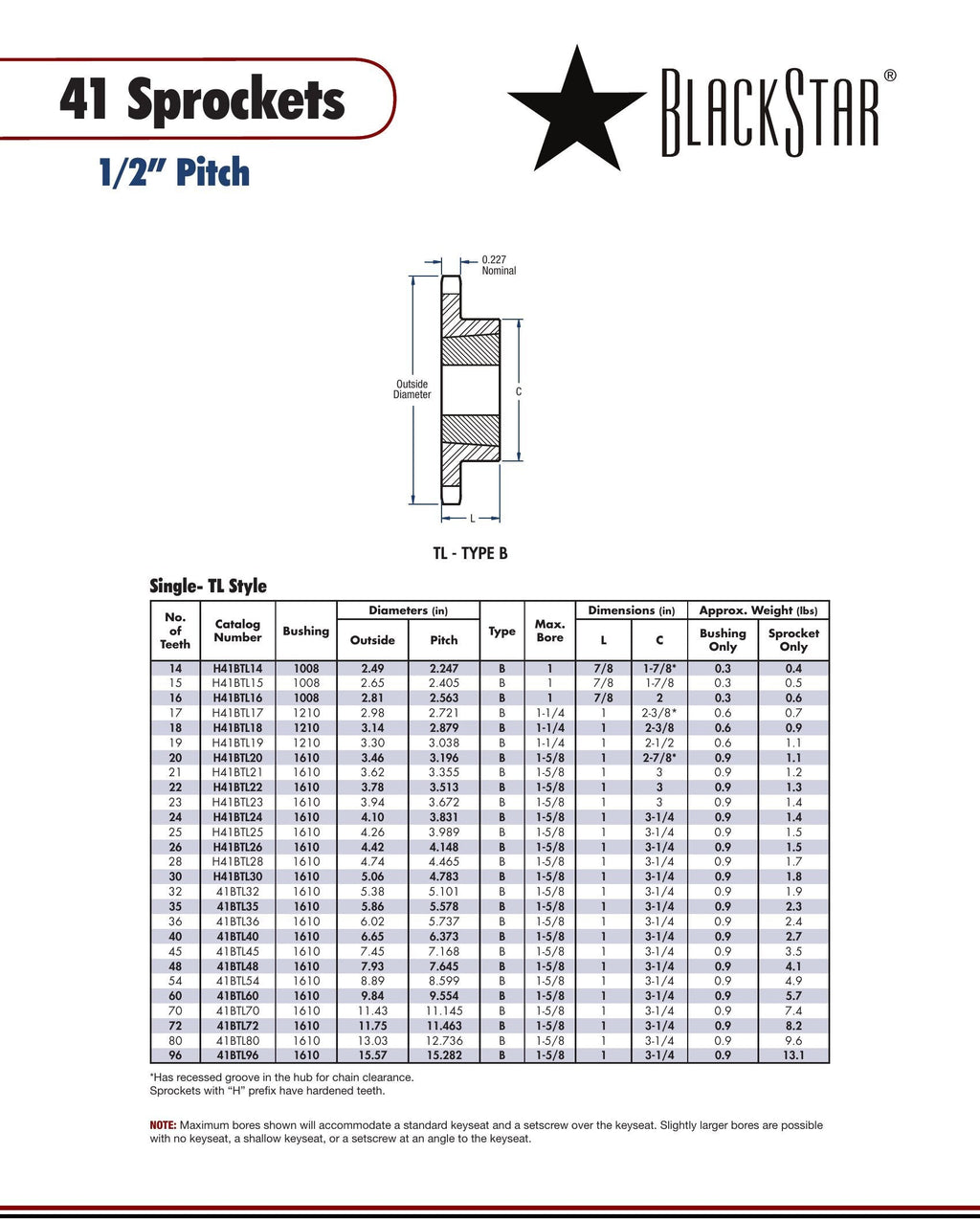

BlackStar H41BTL23 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 41TB23, Browning 41TB23
