Description

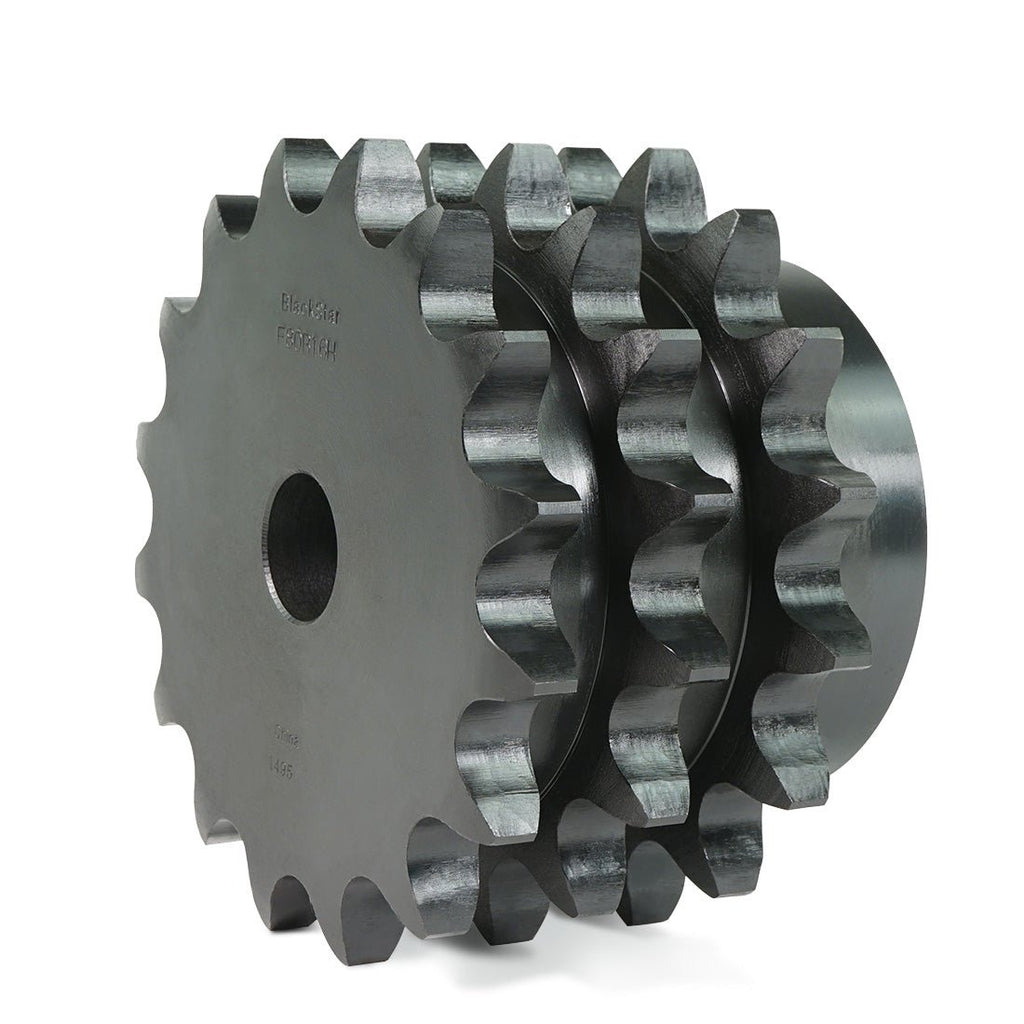

The BlackStar T50SF60H is a 50 pitch triple strand QD roller chain sprocket with 60 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

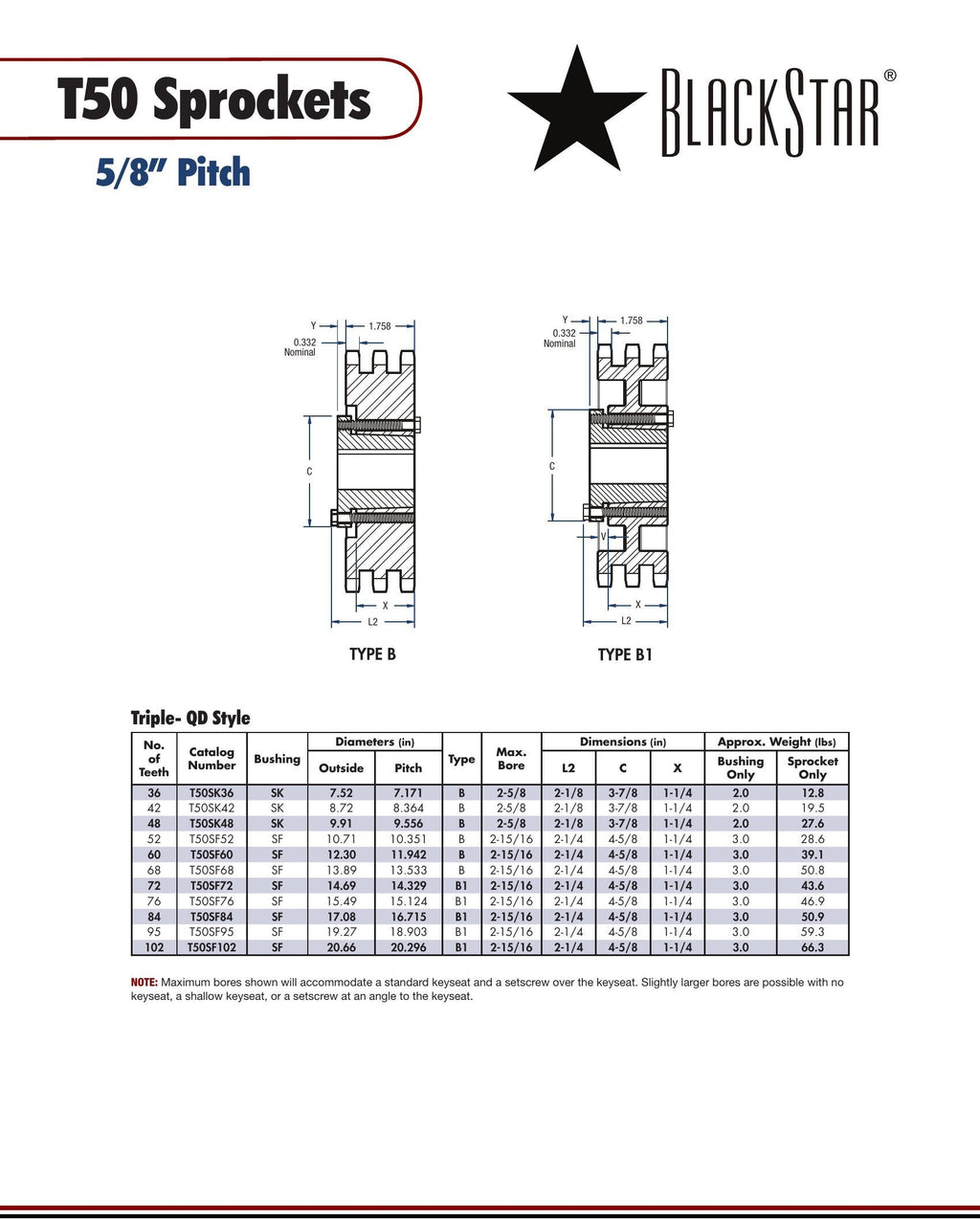

| Specifications | |
|---|---|
| Part Number | T50SF60H |
| Chain Pitch | 50 |
| Number of Teeth | 60 |
| Bore Type | QD |
| Hub Style | QD |
| Bushing Required | QD Type SF Bushing |
| Strand Count | Triple |
| Material | Steel |
| Outside Diameter | 12.30" |
| Pitch Diameter | 11.942" |
| Approx. Weight | 1.00001 lbs |

Bushing Required
This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Browning T50SF60, Martin T50SF60
